HVPS card assembly removal
1. Remove the side cover, right. Go to “Side cover, right removal (T650)” on page 4-66 or “Side cover,
right removal (T652, T654, T656)” on page 4-67.

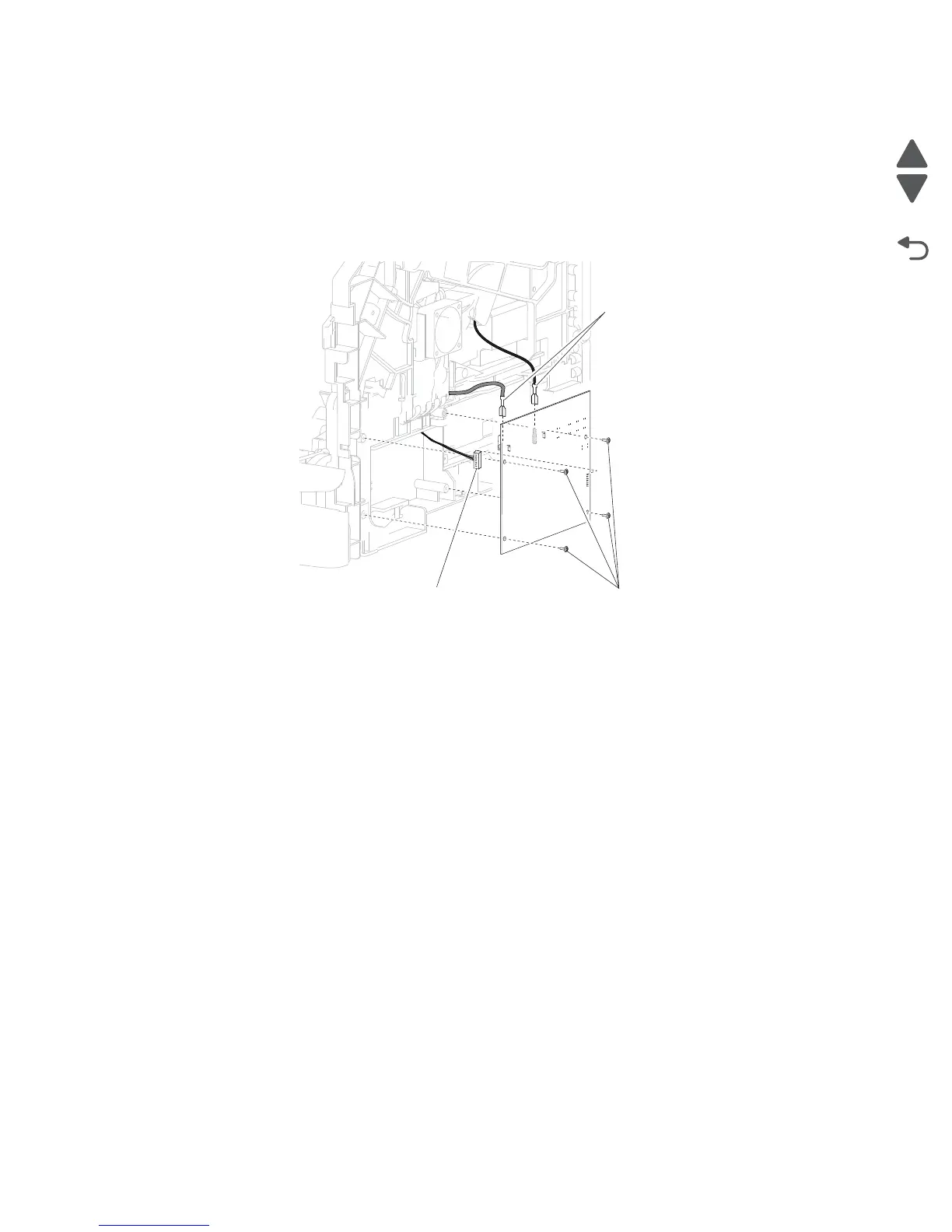

2. Remove the four screws (A) securing the HVPS card assembly to the machine.
3. Remove the HVPS card assembly.
4. Remove connection (B) and the two high voltage connections (C) from the HVPS card assembly.
Replacement Warning: When replacing the HVPS card assembly, ensure that the two high voltage
connections (C) are properly replaced.
Inner deflector removal
Note: The MPF lift plate assembly can be detached and allowed to hang by the harness. The connection to
the MPF lower deflector assembly does not need to be disconnected.
1. Remove the MPF lift plate assembly. Go to “MPF lift plate assembly removal” on page 4-36.
C
A
B

Lexmark T650 Series Specifications

General

Print Technology	Monochrome Laser
Print Speed	Up to 45 ppm
Print Resolution	1200 x 1200 dpi
Monthly Duty Cycle	Up to 200, 000 pages
Standard Output Capacity	250 sheets
Processor Speed	500 MHz
Connectivity	USB, Ethernet
Maximum Paper Size	8.5 x 14 inches
Operating System Compatibility	Windows, Mac OS, Linux
Memory	128 MB, expandable to 640 MB
Standard Input Capacity	650 sheets
