MPF tray door assembly removal (T650, T652, T654)
1. Open the operator panel door assembly.

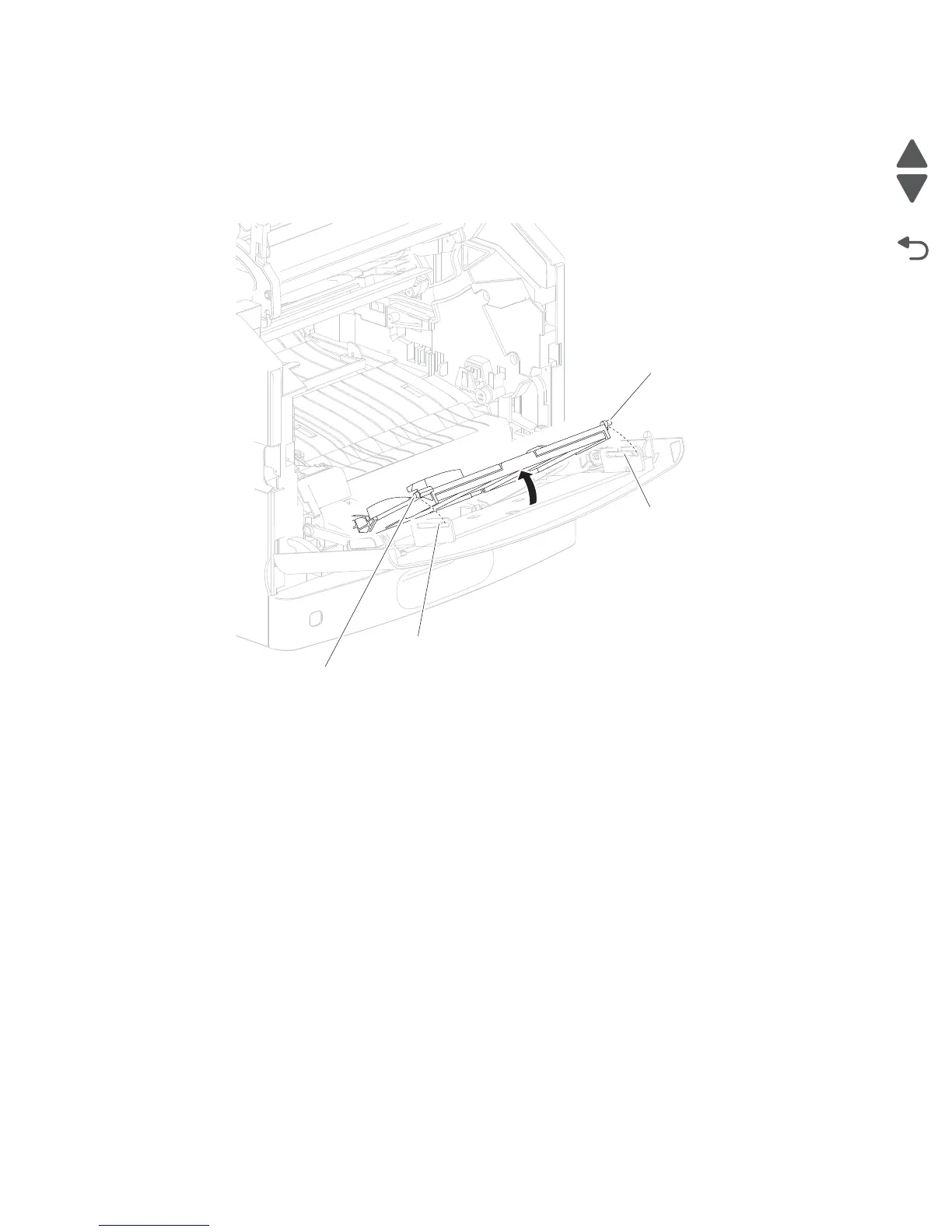

2. Open the MPF tray door assembly, and position it as shown in the picture.
3. Gently release the two bosses (A) from the slots (B).
A
B
B
A
