Lexmark T650 Series Service Manual

Diagnostic aids 3-89
4062-XXX
Go Back
Previous
Next
Media transport path

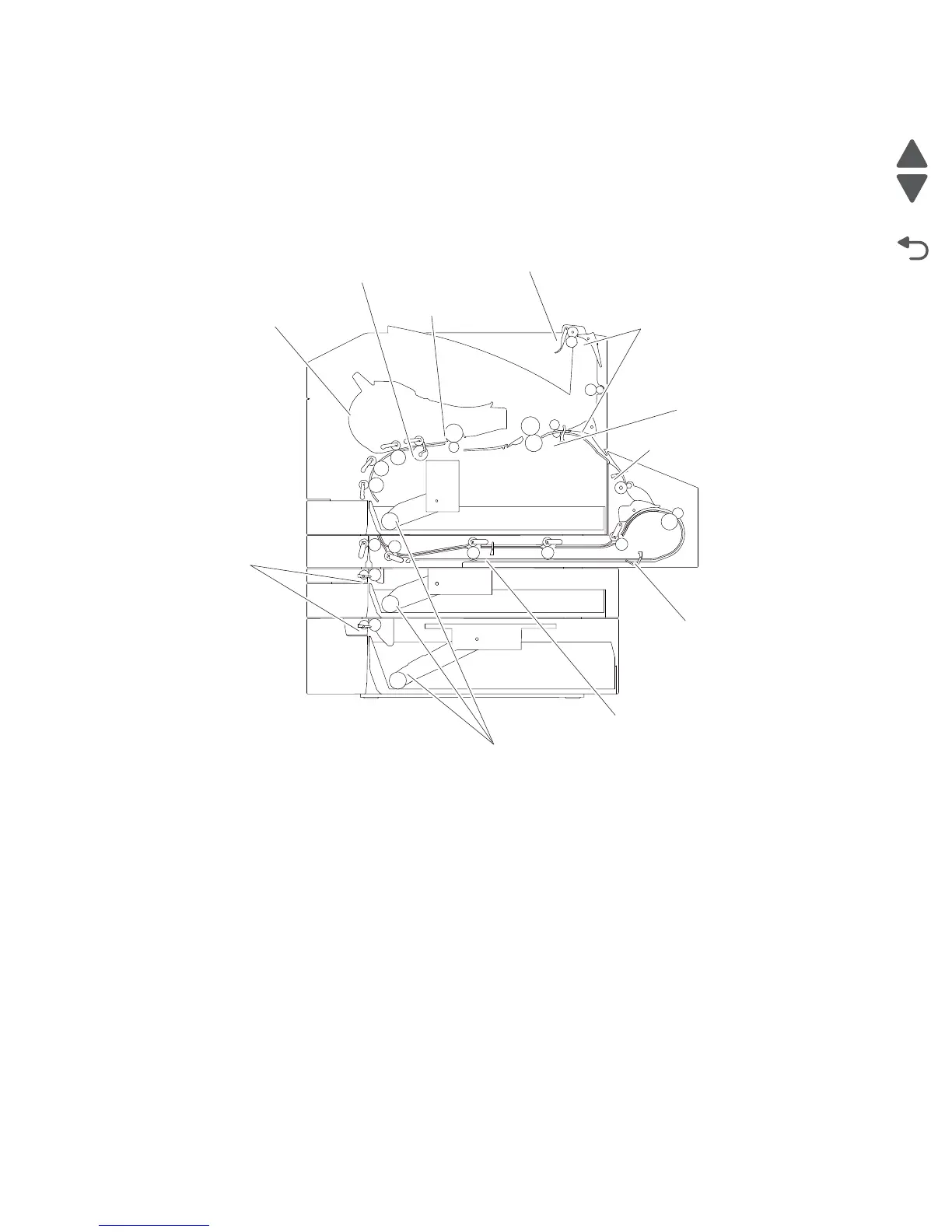

The following is a cross section of the printer and the tandem tray module, showing the main components
directly associated with the media path and transport.
Model T650 paper path, rolls, and sensors
PC cartridge
Sensor (input)
PC drum
Standard bin full actuator
and sensor (standard bin full)
Diverter
Sensor (duplex input)
Sensor (fuser output)
Sensor (narrow media)
Sensor (duplex
double feed)
Sensor (duplex exit)
Pick arm
assembly
Sensor (option
pass through)

Lexmark T650 Series Specifications

General

Print Technology	Monochrome Laser
Print Speed	Up to 45 ppm
Print Resolution	1200 x 1200 dpi
Monthly Duty Cycle	Up to 200, 000 pages
Standard Output Capacity	250 sheets
Processor Speed	500 MHz
Connectivity	USB, Ethernet
Maximum Paper Size	8.5 x 14 inches
Operating System Compatibility	Windows, Mac OS, Linux
Memory	128 MB, expandable to 640 MB
Standard Input Capacity	650 sheets
