SFP stapler assembly sensor (media stack) removal
1. Remove the top cover. Go to “SFP stapler assembly top cover removal” on page 4-175.
2. Disconnect the harness to the sensor (media stack).

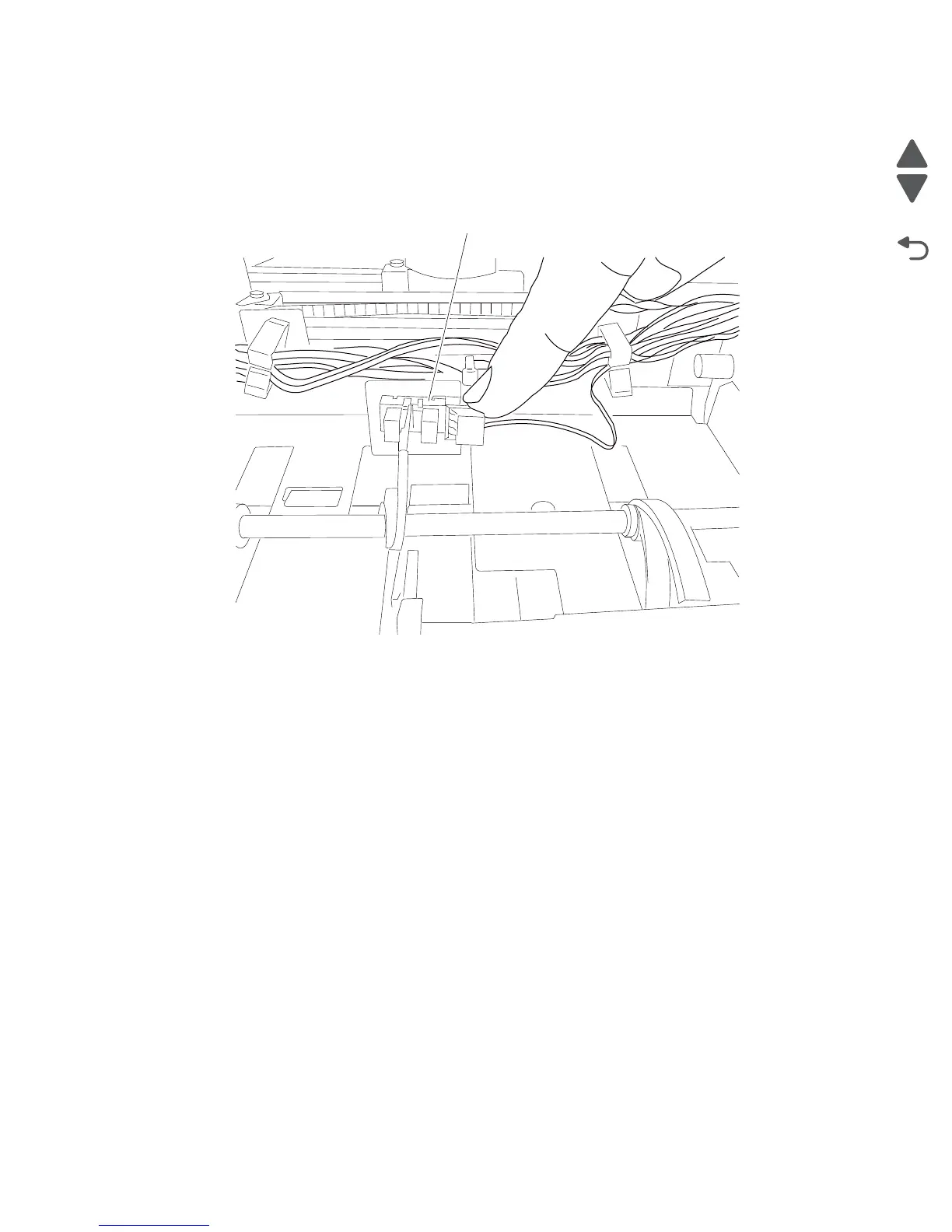

3. Using your fingers, pinch tab (A) securing the sensor (media stack) and remove.
A
