SFP stapler assembly media stack flap and media stack flap actuator removal
1. Remove the handle cover. Go to “SFP stapler assembly handle cover removal” on page 4-176.

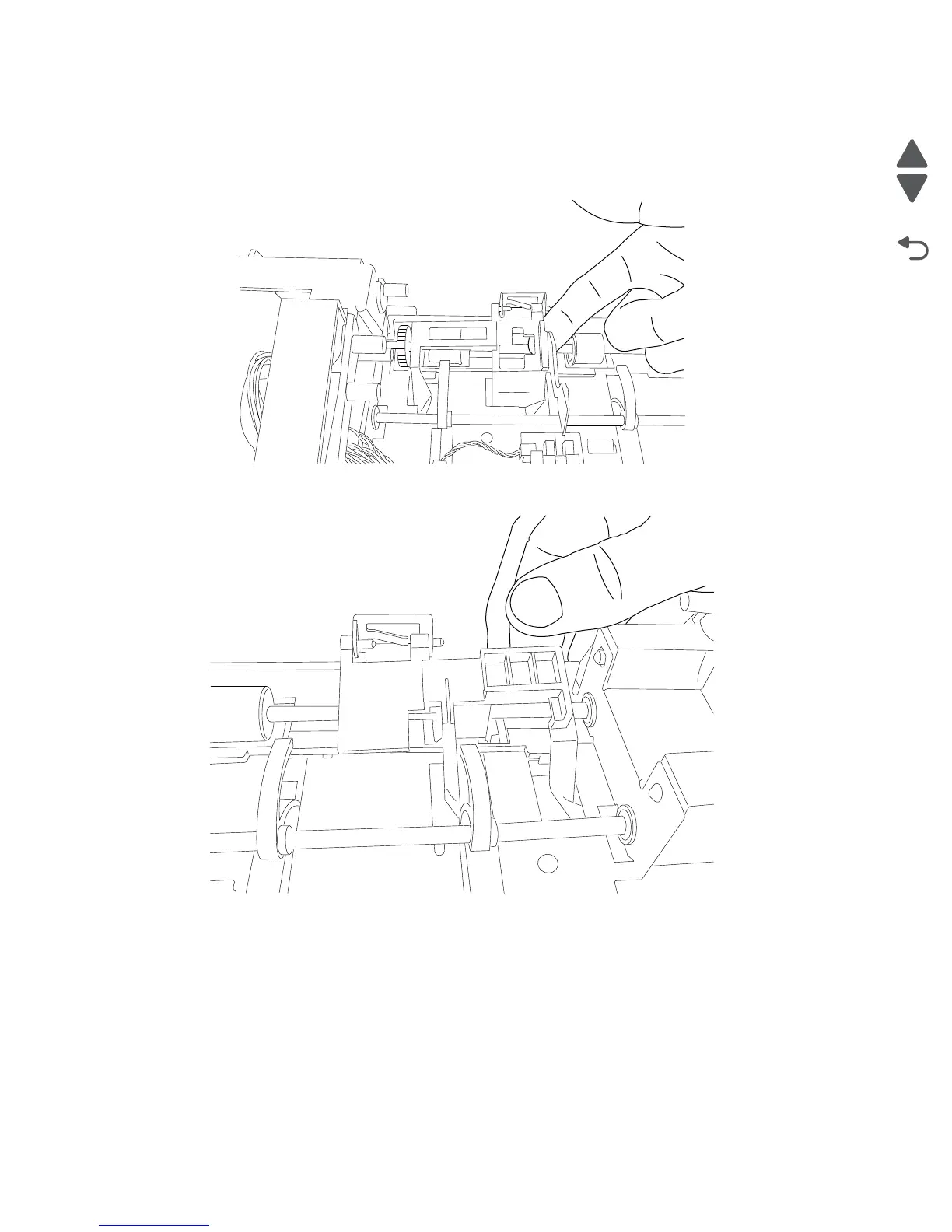

2. Release the locking tab and slide the media stack flap actuator to the right and remove.
