Lexmark T650 Series Service Manual

3-94 Service Manual
4062-XXX
Go Back
Previous
Next
Models T652 and T654 duplex paper path

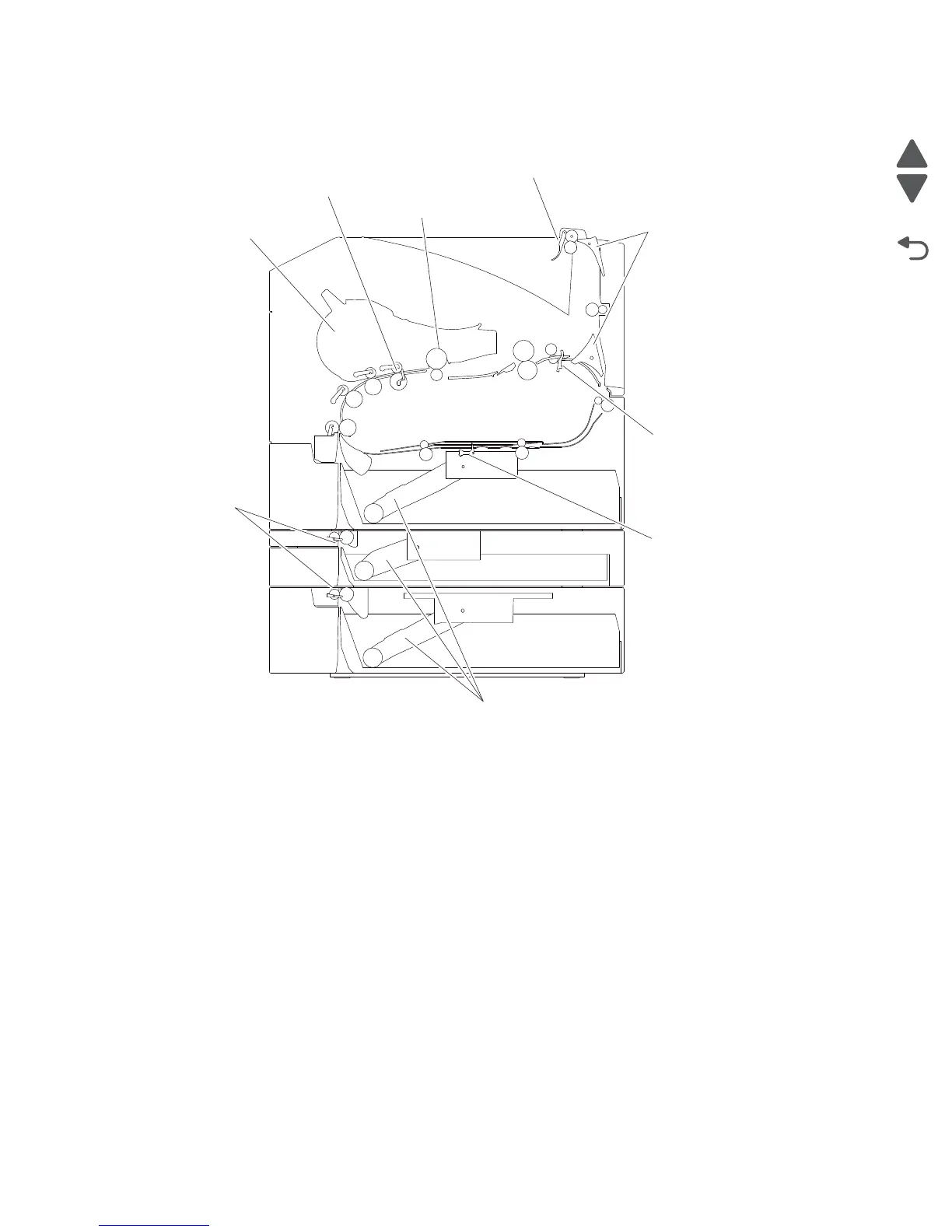

Functions of main components
When the duplex is installed, duplex (double-sided) printing is available with the printer.
The following outlines the functions of the main components of the duplex.
Sensor (duplex input)
The sensor (duplex wait) detects whether media is remaining in the duplex.
PC cartridge
Sensor (input)
PC drum
Standard bin full actuator
and sensor (standard bin full)
Diverter
Sensor
(duplex input)
Sensor (fuser output)
Sensor (narrow media)
Pick arm
assembly
Sensor (option
pass through)

Lexmark T650 Series Specifications

General

Print Technology	Monochrome Laser
Print Speed	Up to 45 ppm
Print Resolution	1200 x 1200 dpi
Monthly Duty Cycle	Up to 200, 000 pages
Standard Output Capacity	250 sheets
Processor Speed	500 MHz
Connectivity	USB, Ethernet
Maximum Paper Size	8.5 x 14 inches
Operating System Compatibility	Windows, Mac OS, Linux
Memory	128 MB, expandable to 640 MB
Standard Input Capacity	650 sheets
