High capacity input tray (HCIT) tray cover, front removal
1. Open the HCIT media tray assembly until it reaches a stop.

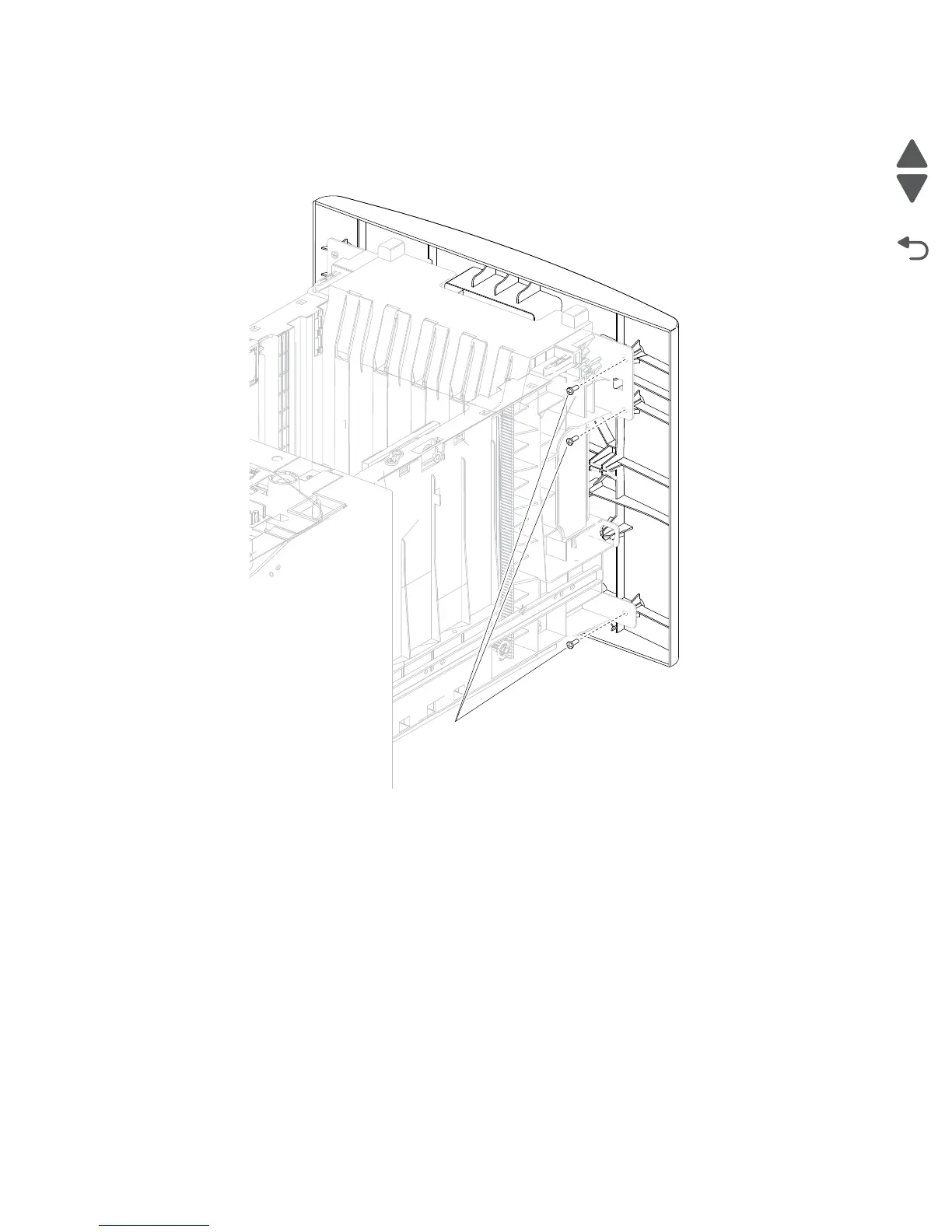

2. Remove the six screws (A) securing the HCIT tray cover, front to the HCIT media tray assembly.
A
