Repair Information 4-75
4062-XXX
System card assembly removal
Warning: When replacing any of the following components:
• Operator panel assembly
• System card assembly
Only replace one component at a time. Replace the required component and perform a POR before replacing a second
component listed above. If this procedure is not followed, the printer will be rendered inoperable. Never replace two or more
of the components listed above without a POR after installing each one or the printer will be rendered inoperable.
Never install and remove components listed above as a method of troubleshooting components. Once a component has
been installed in a machine, it can not be used in another machine. It must be returned to the manufacturer.
1. Remove the side cover, left. Go to “MPF cam gear removal” on page 4-36 or “Side cover, left removal
(T652, T654, T656)” on page 4-66.

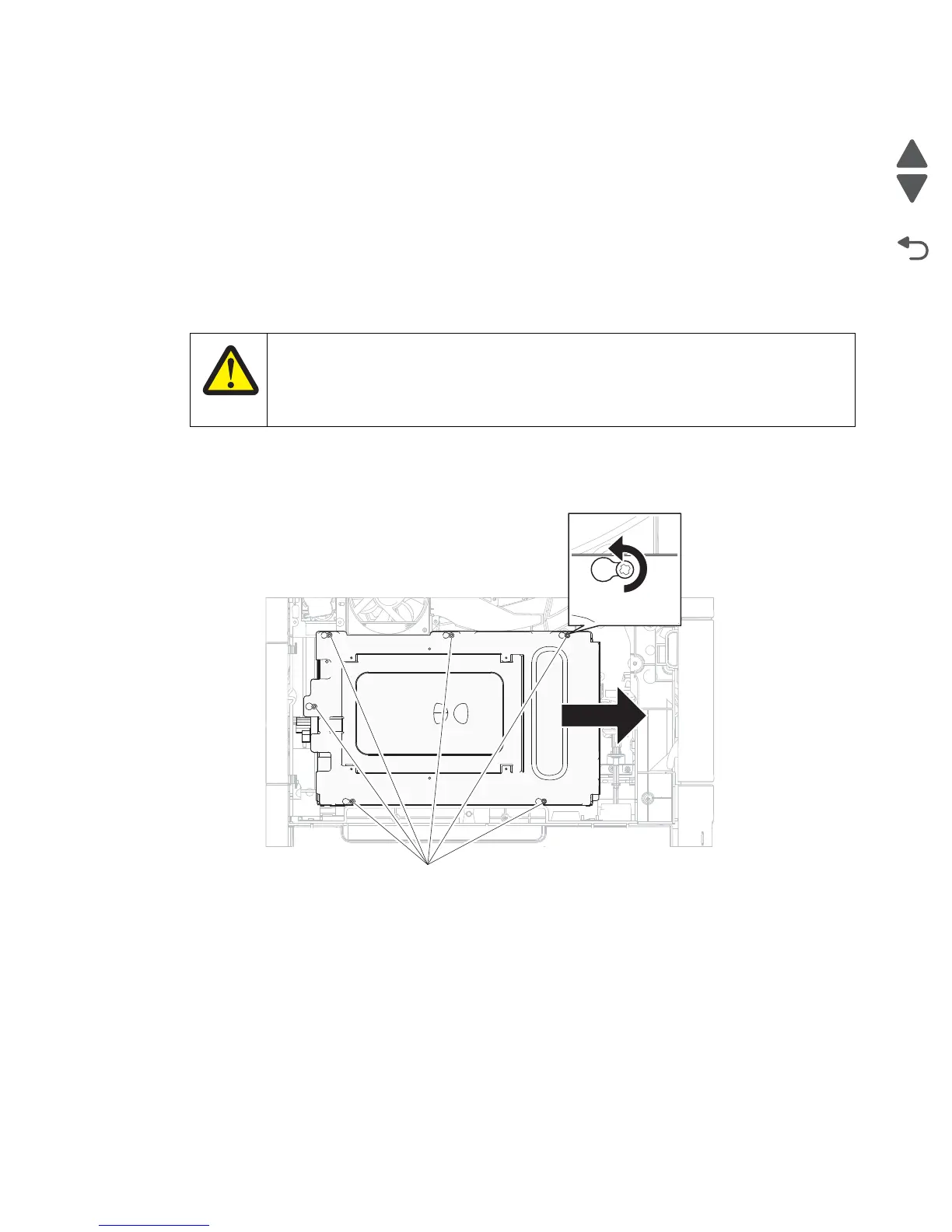

2. Remove the six screws (A) securing the metal shield to the machine.
3. Slide the metal shield in the direction of the arrow.
CAUTION
This product contains a lithium battery. THERE IS A RISK OF EXPLOSION IF THE BATTERY
IS REPLACED BY AN INCORRECT TYPE. Discard used batteries according to the battery
manufacturer’s instructions and local regulations.
To Next Page
