Repair Information 4-27
4062-XXX
Go Back
Previous
Next

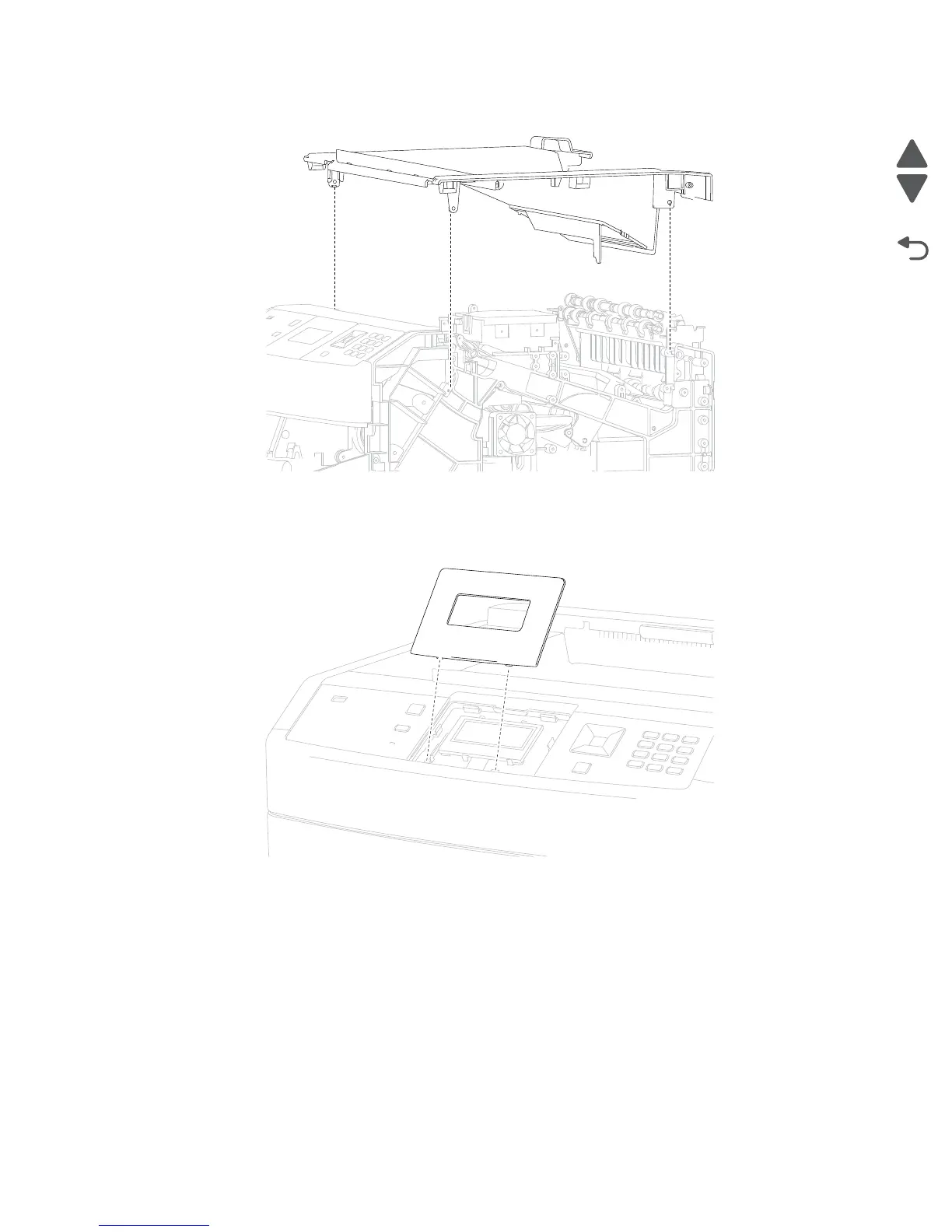

6. Remove the laser cover.
LCD screen bezel removal (T650, T652, T654)
Gently detach the LCD screen bezel from the operator panel door assembly.
