Lexmark T650 Series Service Manual

Repair Information 4-95
4062-XXX
Go Back
Previous
Next

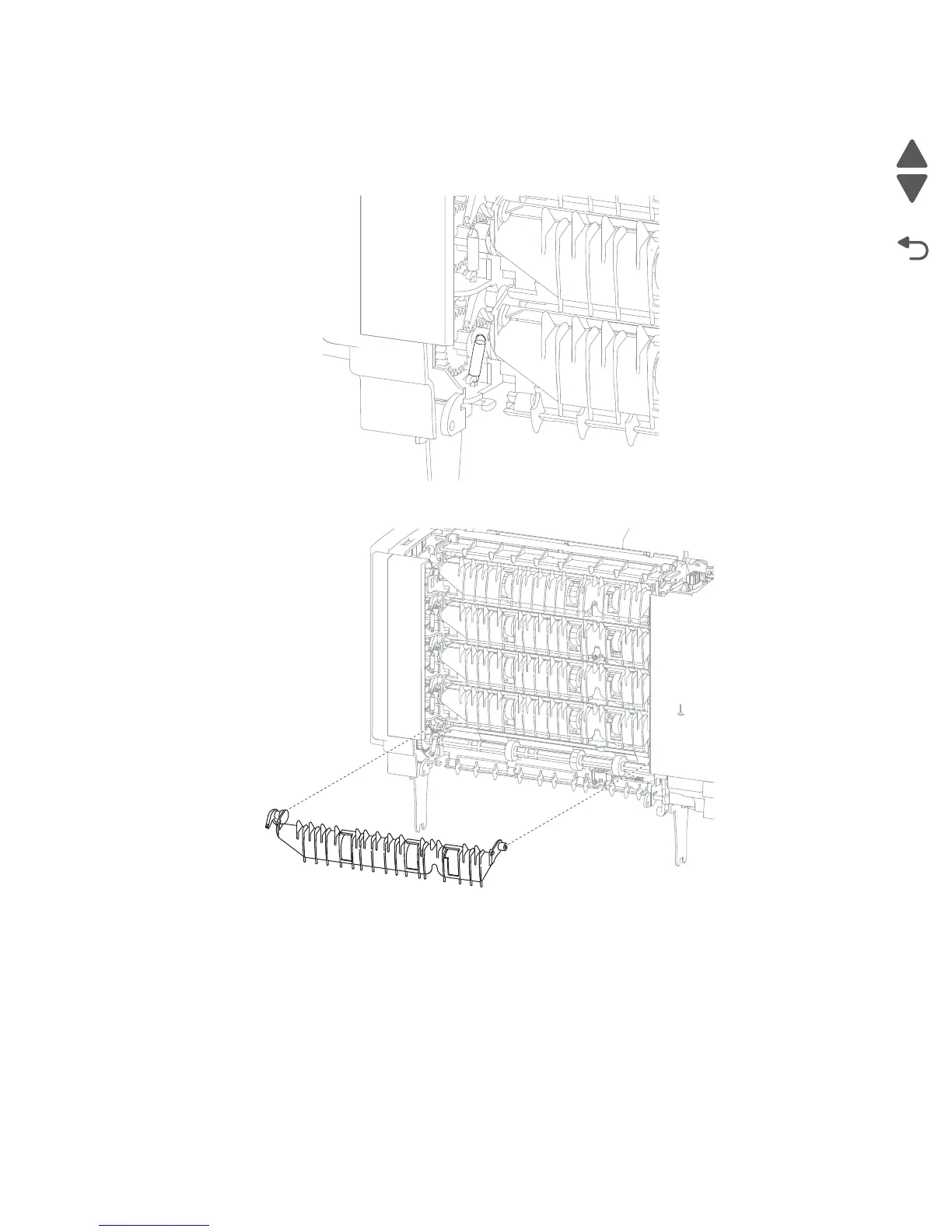

5-bin mailbox media bin first through fourth deflector removal
1. Remove the rear door assembly. Go to “5-bin mailbox rear door assembly removal” on page 4-84.
2. Using a springhook, remove the deflector spring from the deflector.
3. Unsnap each side of the deflector and remove.
Replacement Note: The static brush mylar assembly is attached to the media bin fifth deflector. Do not forget
to reinstall it on the new deflector.

Lexmark T650 Series Specifications

General

Print Technology	Monochrome Laser
Print Speed	Up to 45 ppm
Print Resolution	1200 x 1200 dpi
Monthly Duty Cycle	Up to 200, 000 pages
Standard Output Capacity	250 sheets
Processor Speed	500 MHz
Connectivity	USB, Ethernet
Maximum Paper Size	8.5 x 14 inches
Operating System Compatibility	Windows, Mac OS, Linux
Memory	128 MB, expandable to 640 MB
Standard Input Capacity	650 sheets
