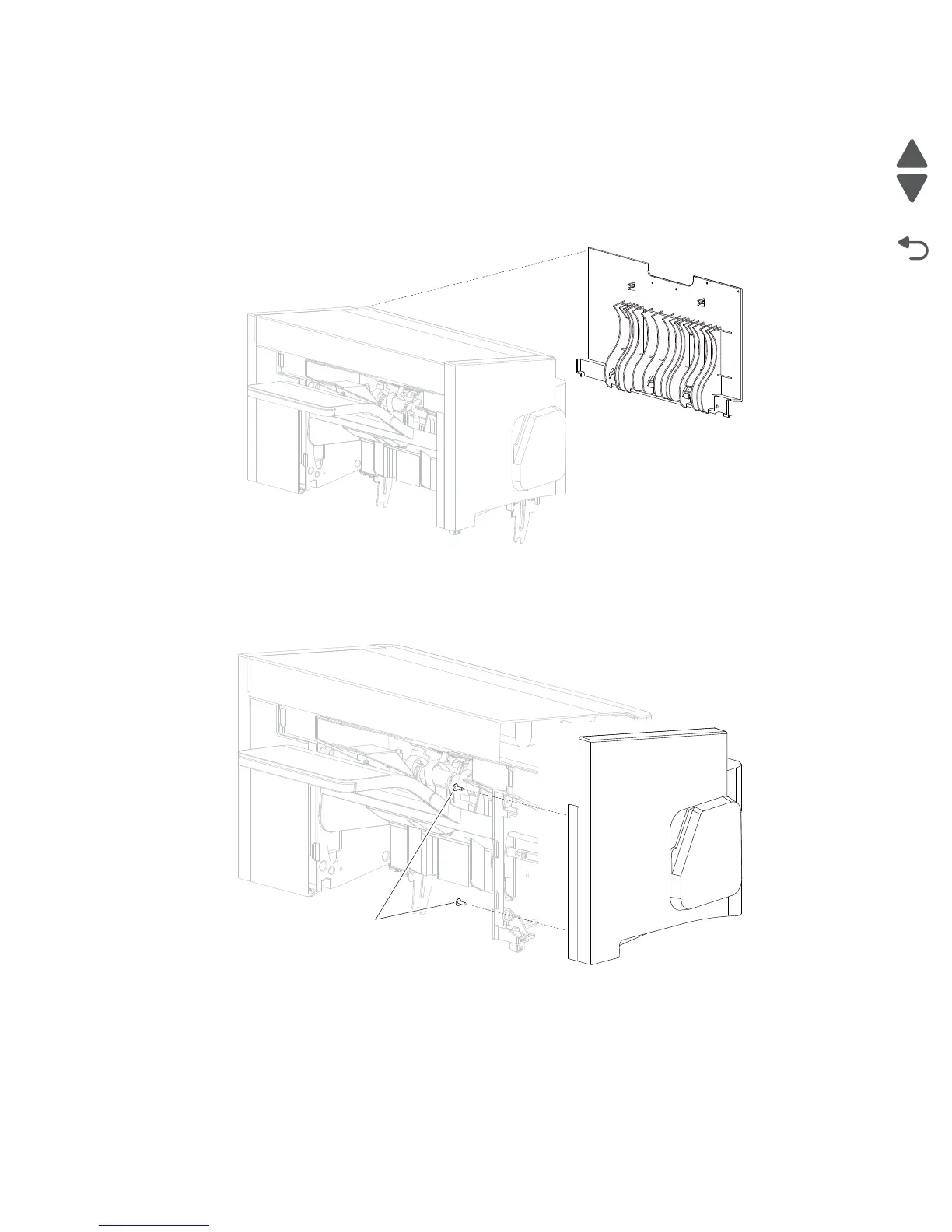

SFP stapler assembly rear door assembly removal
1. Open the rear door assembly.
2. Force the left hinge out of the slot by pushing the door to the right.
3. Once the left hinge has been disengaged, pull the right hinge out.
4. Remove the rear door assembly.
SFP stapler assembly right cover removal
1. Remove the two screws (A) on the inside of the exit bin compartment securing the right cover.
2. Pull out on the front side of the right cover to disengage the tabs.
3. Remove the right cover.
A
