Lexmark T650 Series - High Capacity Input Tray (HCIT) Tray Assembly

3-84 Service Manual
4062-XXX
Go Back
Previous
Next

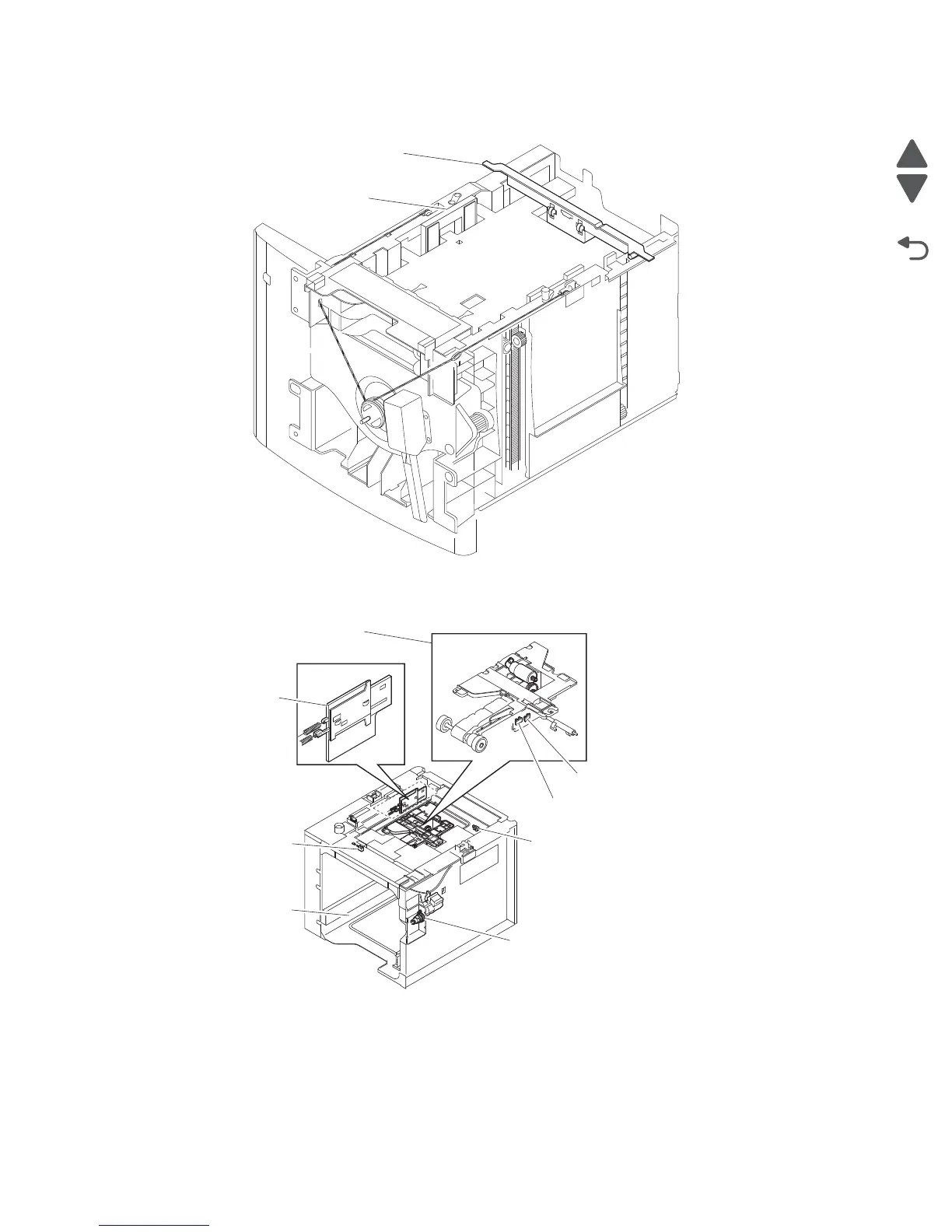

High Capacity Input Tray (HCIT) tray assembly
Rear media tray guide
Media end guide
Pick arm
assembly
Sensor (media empty)
Sensor (media low)
Media size
actuator
Sensor
(pass through)
HCF drawer
assembly
Sensor
(tray raised HP)
Tray lift drive motor
