Lexmark T650 Series - SFP Stapler Assembly Sensor (Finisher bin Media Present) Removal

4-178 Service Manual
4062-XXX
Go Back
Previous
Next
4. Remove the LED sensor cover.
SFP stapler assembly sensor (finisher bin media present) removal
1. Remove the LED sensor cover. Go to “SFP stapler assembly LED sensor cover removal” on
page 4-177.

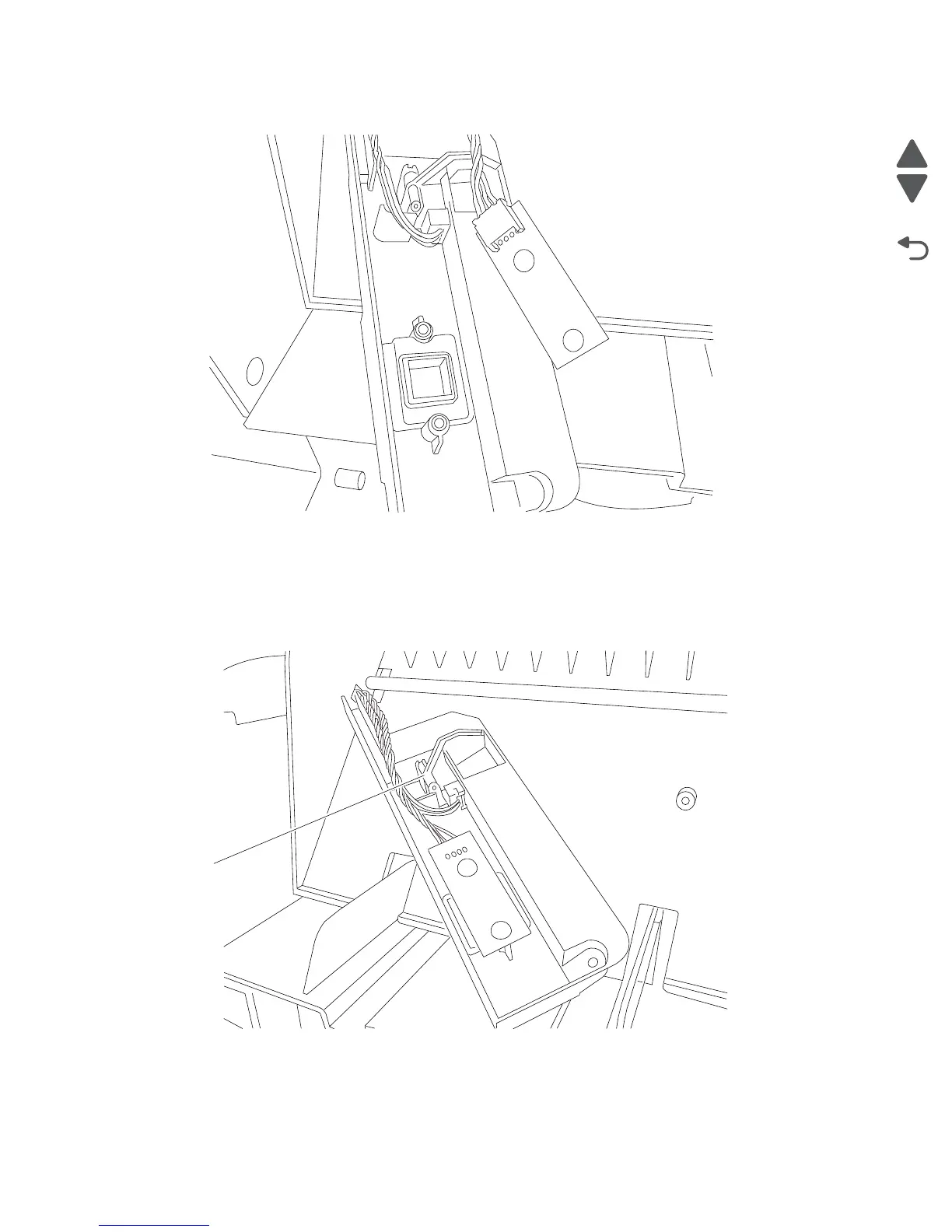

2. Using a flat-blade screwdriver, release the tabs (A) on the sensor and remove it from the sensor cover.
3. Remove the harness connected to the media bin present sensor.
4. Remove the sensor (finisher bin media present).
A
