Lexmark T650 Series Service Manual

Repair Information 4-125
4062-XXX
Go Back
Previous
Next

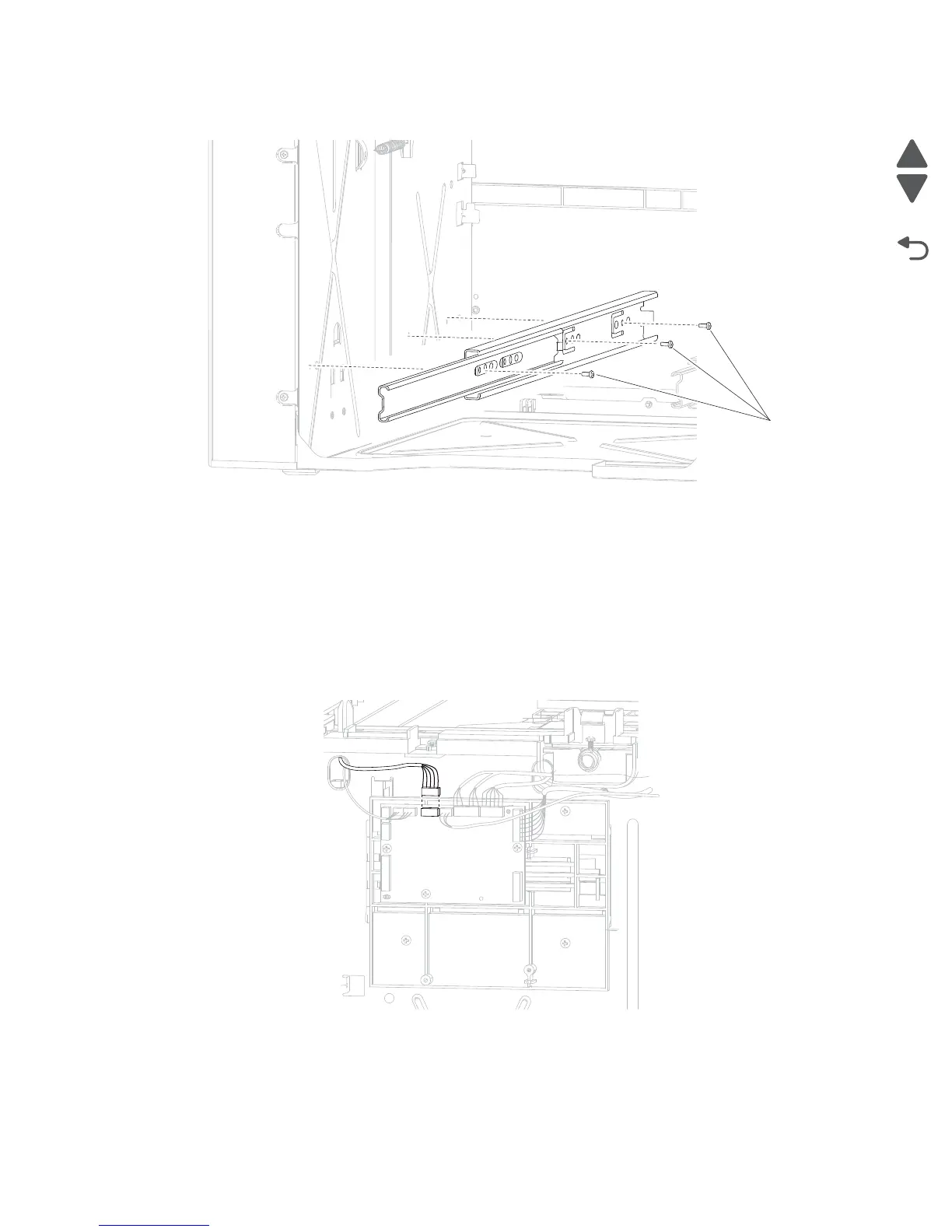

2. Remove the three screws (A) securing the HCIT drawer slide to the frame of the drawer.
3. Remove the HCIT drawer slide.
High capacity input tray (HCIT) tray lift drive motor assembly removal
Note: Carefully remove the base machine from the HCIT tray assembly before proceeding.
1. Remove the HCIT cover, right. Go to “High capacity input tray (HCIT) cover, right removal” on
page 4-120.
2. Remove the HCIT cover, left. Go to “High capacity input tray (HCIT) cover, left removal” on
page 4-122.
3. Disconnect the HCIT tray lift drive motor cable connector from the HCIT controller card assembly.
Note: Remove the cable from the restraint, and observe the routing for reinstallation.
A

Lexmark T650 Series Specifications

General

Print Technology	Monochrome Laser
Print Speed	Up to 45 ppm
Print Resolution	1200 x 1200 dpi
Monthly Duty Cycle	Up to 200, 000 pages
Standard Output Capacity	250 sheets
Processor Speed	500 MHz
Connectivity	USB, Ethernet
Maximum Paper Size	8.5 x 14 inches
Operating System Compatibility	Windows, Mac OS, Linux
Memory	128 MB, expandable to 640 MB
Standard Input Capacity	650 sheets
