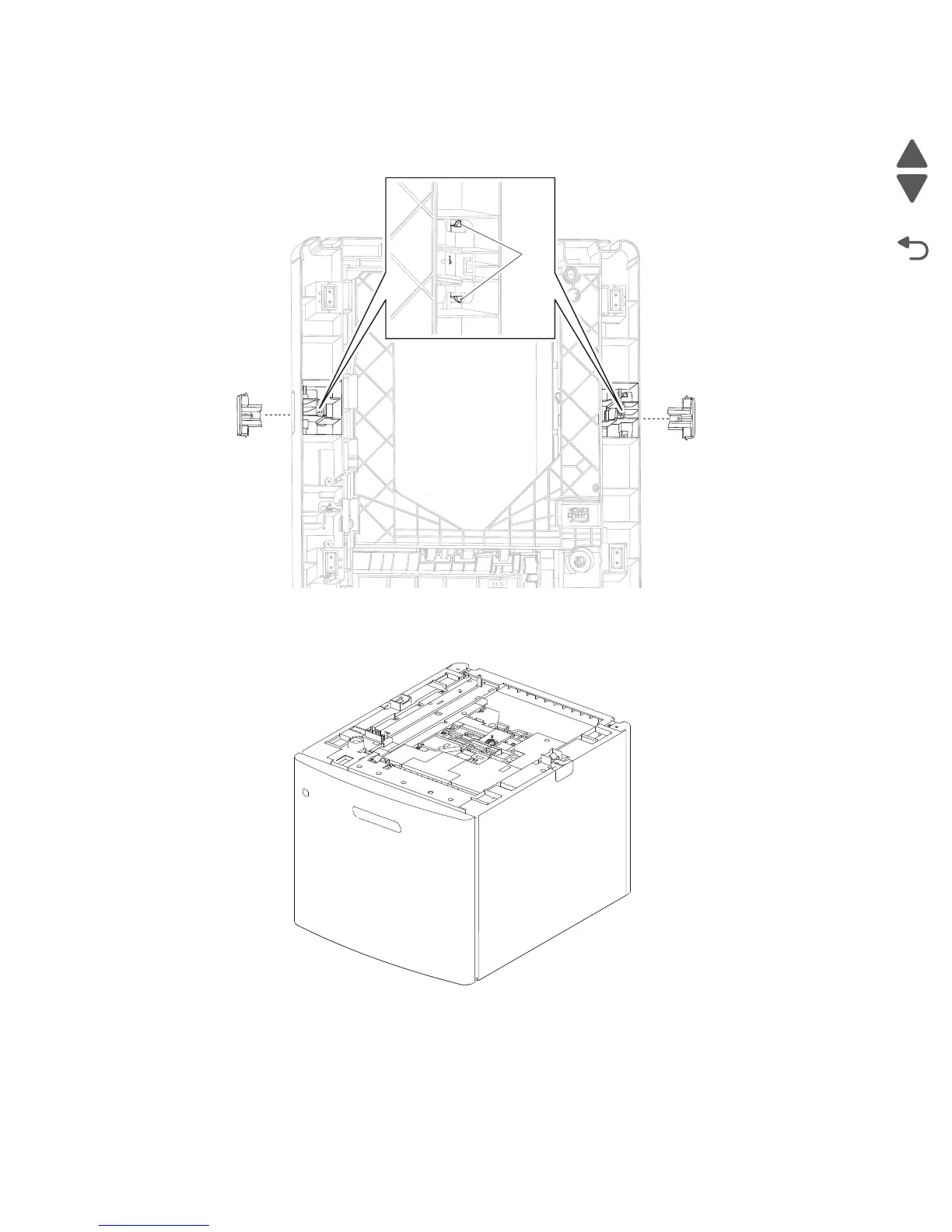

2. Turn the drawer upside down, and unsnap the two hooks (A) securing the anti-tip latch assembly to the
drawer with a flathead screwdriver.
Note: The hooks might break when detaching the anti-tip assembly from the drawer.
3. Remove the anti-tip latch assembly.
High capacity input tray (HCIT)
Note: Carefully remove the HCIT from the base machine and the caster base before proceeding.
A
