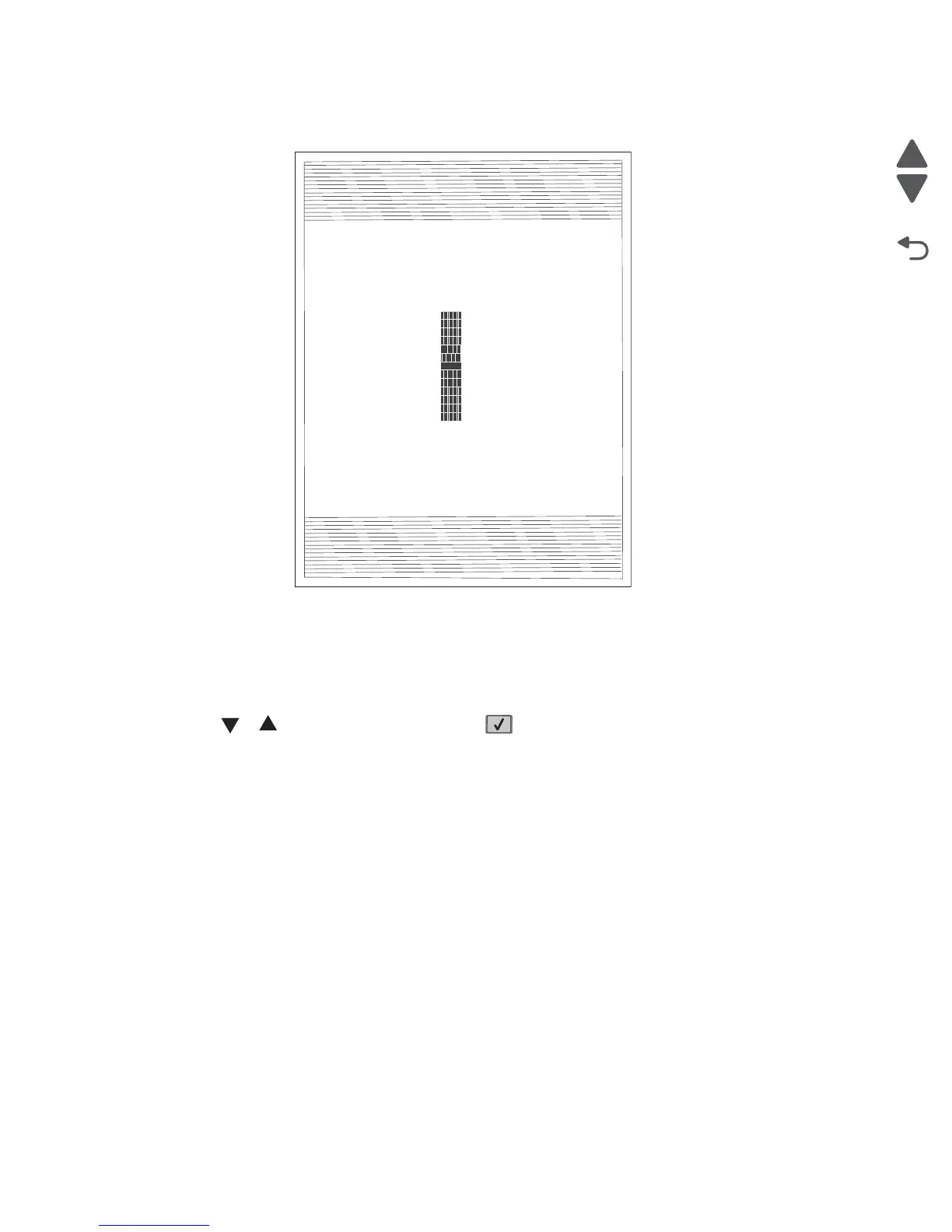

alignment printout is shown below:
6. In the Registration menu, select the right margin setting.
7. To determine the margin setting, choose the value that is closest to the darkest bar on the center graph of
the margin page. Add that value to the current right margin setting printed on the left hand side of the margin
page. (The right margin setting will also appear on the operator panel display.) For example, if the right
margin setting on the page is -2, and the number that is closest to the darkest line on the graph is 3
(-2+3), then the right margin setting will be equal to +1.
8. Press or to the desired setting, and press .
9. Print the Quick Test page again and check that the darkest line in the center graph is equal to zero. If it is,
then check to see if the left, top, and bottom margins are detected. If it is not, then repeat step 5.
Note: The alignment of the left margin positions the black plane to the right or left. The alignment of the right
margin does not alter the margins and should only be used to adjust the printhead.
Alignment assembly adjustment
Do the alignment assembly adjustment whenever you replace the alignment assembly. Always print a copy of
the Quick Test Page before making any adjustments to the alignment assembly reference adjustment screw.
When replacing the alignment assembly, it is necessary to back the reference adjustment screw out far
enough to remove the old assembly and install the new one.
• If you are replacing the alignment assembly, go to step A.
• If you are only adjusting the reference adjustment screw, go to step B.
Step A
Print a copy of the Quick Test Page and check the margin adjustments printed on the test page. These settings
should be within the range specified in “Registration” on page 3-67.
Do the reference adjustment if you are sure the margins are set correctly.
Loader
Kernel
Base
Network
Netwrk Drvr
Engine
Panel
Font
LF.LBH.P055-0
FFN.APS.F191a-0
LF.LBH.P055-0
NF.APS.N179-0
LF.LBH.P055-0
AF.LB.E037-0
9.9
8.31M02-U5.0
Lexmark Hd
QuickTest
Device Information
Printer Revision Levels
Printer Margin Settings
Page Cou nt
Installed Memory
Processor Speed
31
192 MB
467MHz
Serial Number
0116413
TDS Calibration
00 14 FF 00 00 00 00
Engine ID
40
System Card ID
0004007E24A2
Top Margin
= 5
Bottom Margin
= 0
Left Margin
Right Margin
Dup Top Margin
Dup Left Margin
Paper Source
Formatted Size
= -3
= 0
= 0
= 0
=Tray 1
= Letter
Darkest bar indicates
ADJUSTMENT AMOUNT
for bidirectional alignment
- 12
- 10
- 8
- 6
- 4
- 2
0
+ 2
+ 4
+ 6
+ 8
+ 10
+ 12
