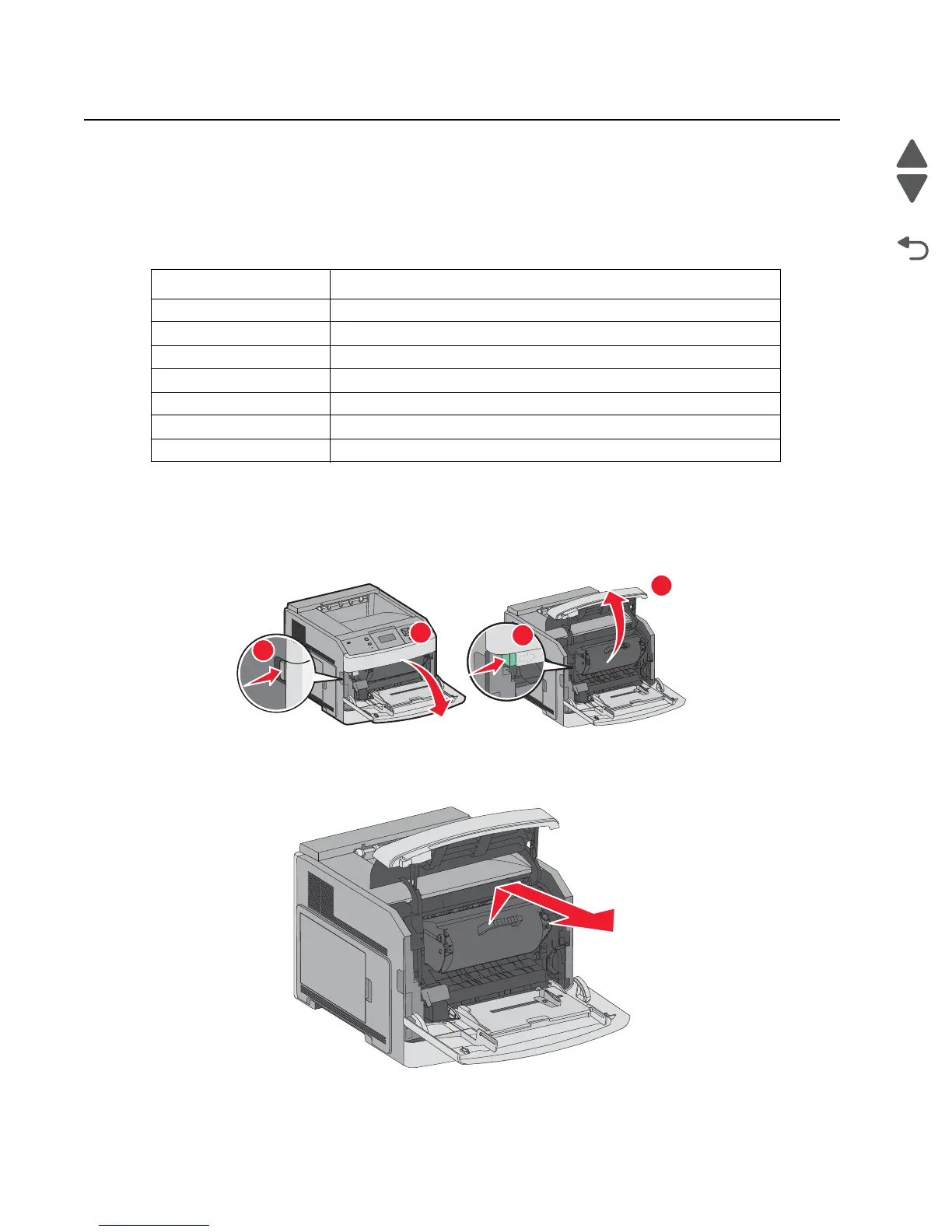

Understanding jam numbers and locations
When a jam occurs, a message indicating the jam location appears. Open doors and covers and remove trays
to access jam locations. To resolve any paper jam message, you must clear all jammed paper from the paper
path.
The following table lists the jams that can occur and the location of each jam:
200 and 201 paper jams
1. Push the release latch, and then lower the multipurpose feeder door.
2. Push the release latch, and then open the front cover.
3. Lift and pull the print cartridge out of the printer.
WARNING: Do not touch the photoconductor drum on the underside of the cartridge. Use the cartridge handle
whenever you are holding the cartridge.
4. Place the print cartridge aside on a flat, smooth surface.
Jam numbers Area
200–203 Printer
230–239 Duplex unit
241–245 Paper trays
250 Multipurpose feeder
260 Envelope feeder
270–279 Optional output bins
28x Stapler
3
4
1
2

Lexmark T650 Series Specifications

General

Print Technology	Monochrome Laser
Print Speed	Up to 45 ppm
Print Resolution	1200 x 1200 dpi
Monthly Duty Cycle	Up to 200, 000 pages
Standard Output Capacity	250 sheets
Processor Speed	500 MHz
Connectivity	USB, Ethernet
Maximum Paper Size	8.5 x 14 inches
Operating System Compatibility	Windows, Mac OS, Linux
Memory	128 MB, expandable to 640 MB
Standard Input Capacity	650 sheets
