Lexmark T650 Series - High Capacity Stacker Left Mounting Bracket Removal

Repair Information 4-147
4062-XXX
Go Back
Previous
Next
High capacity stacker left mounting bracket removal
1. Remove the high capacity stacker left cover. “High capacity stacker left cover removal” on page 4-136.

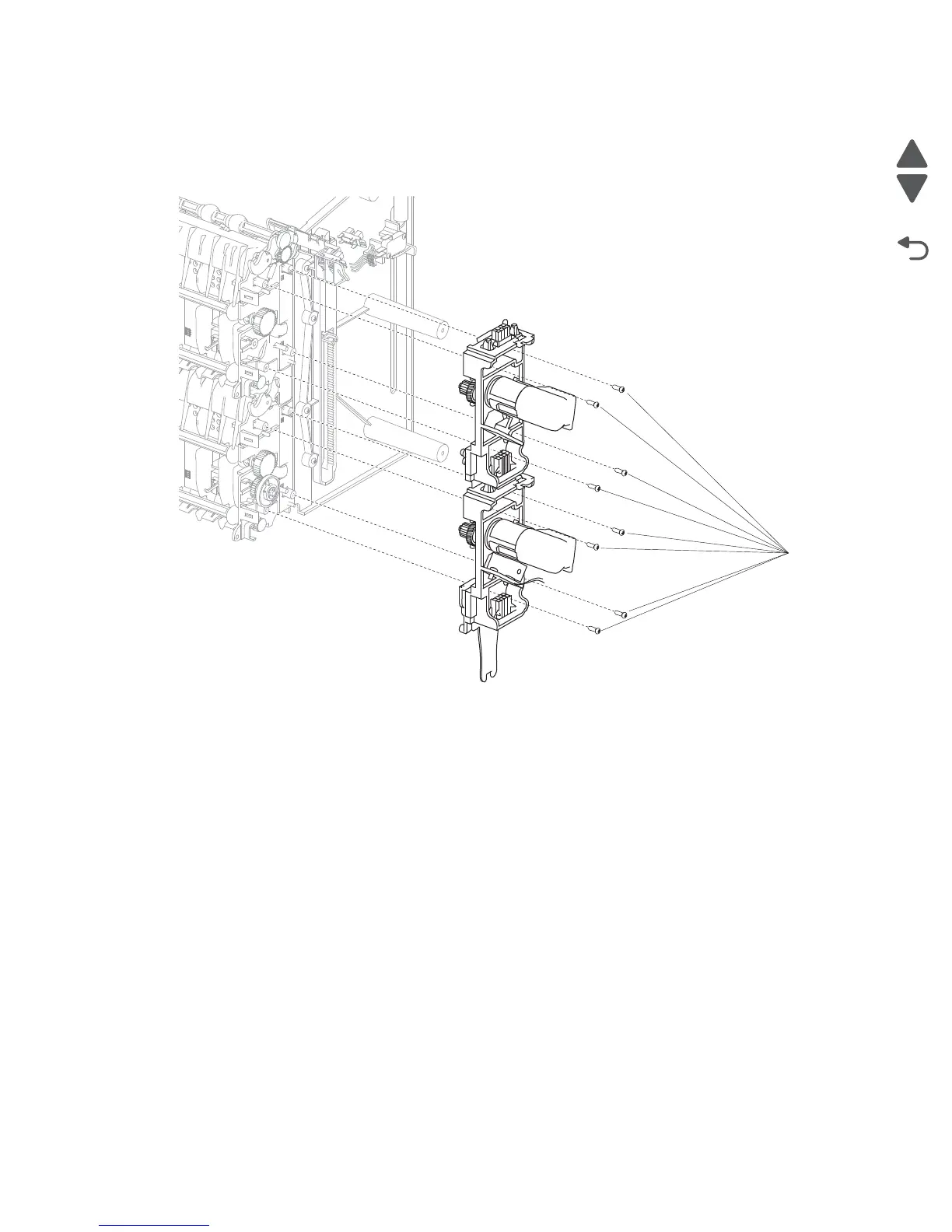

2. Remove the eight screws (A) securing the high capacity stacker left mounting bracket.
3. Pull the bracket up and let it rest on the assembly with the cables intact.
A
