5-bin mailbox sensor (pass through) removal
1. Remove the 5-bin mailbox left outer cover. Go to “5-bin mailbox left outer cover removal” on page 4-85.
2. If the lower pass through sensor needs to be removed, first remove the 5-bin mailbox rear door assembly.
Go to “5-bin mailbox rear door assembly removal” on page 4-84.

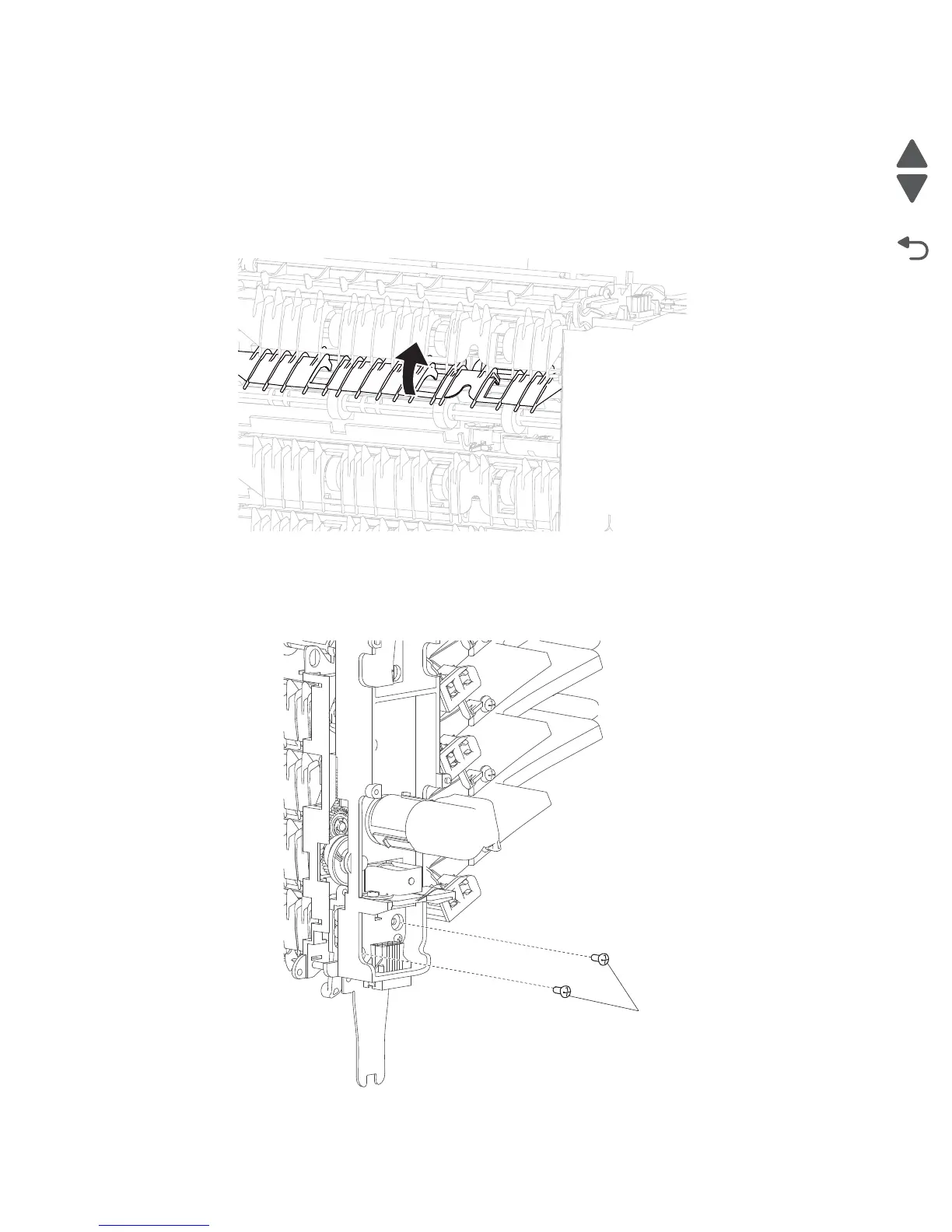

3. Lift up the deflector gate above the sensor (pass through) and using a flat-blade screwdriver, release the
tabs securing the sensor.
4. Disconnect the appropriate harness from the controller card (J11) for the upper sensor (pass through) and
(J5) for the lower sensor (pass through).
Note: The use of a spring hook facilitates the unrouting of the cables. Remove the two screws (A) and lift the
left frame assembly to ease removal of the lower sensor (pass through) harness.
A

Lexmark T650 Series Specifications

General

Print Technology	Monochrome Laser
Print Speed	Up to 45 ppm
Print Resolution	1200 x 1200 dpi
Monthly Duty Cycle	Up to 200, 000 pages
Standard Output Capacity	250 sheets
Processor Speed	500 MHz
Connectivity	USB, Ethernet
Maximum Paper Size	8.5 x 14 inches
Operating System Compatibility	Windows, Mac OS, Linux
Memory	128 MB, expandable to 640 MB
Standard Input Capacity	650 sheets
