SFP stapler assembly paddle drive motor assembly removal
1. Remove the left cover. Go to “SFP stapler assembly left cover removal” on page 4-174.
2. Disconnect the paddle motor harness from the controller card.
3. Remove the cable from the harness clip.

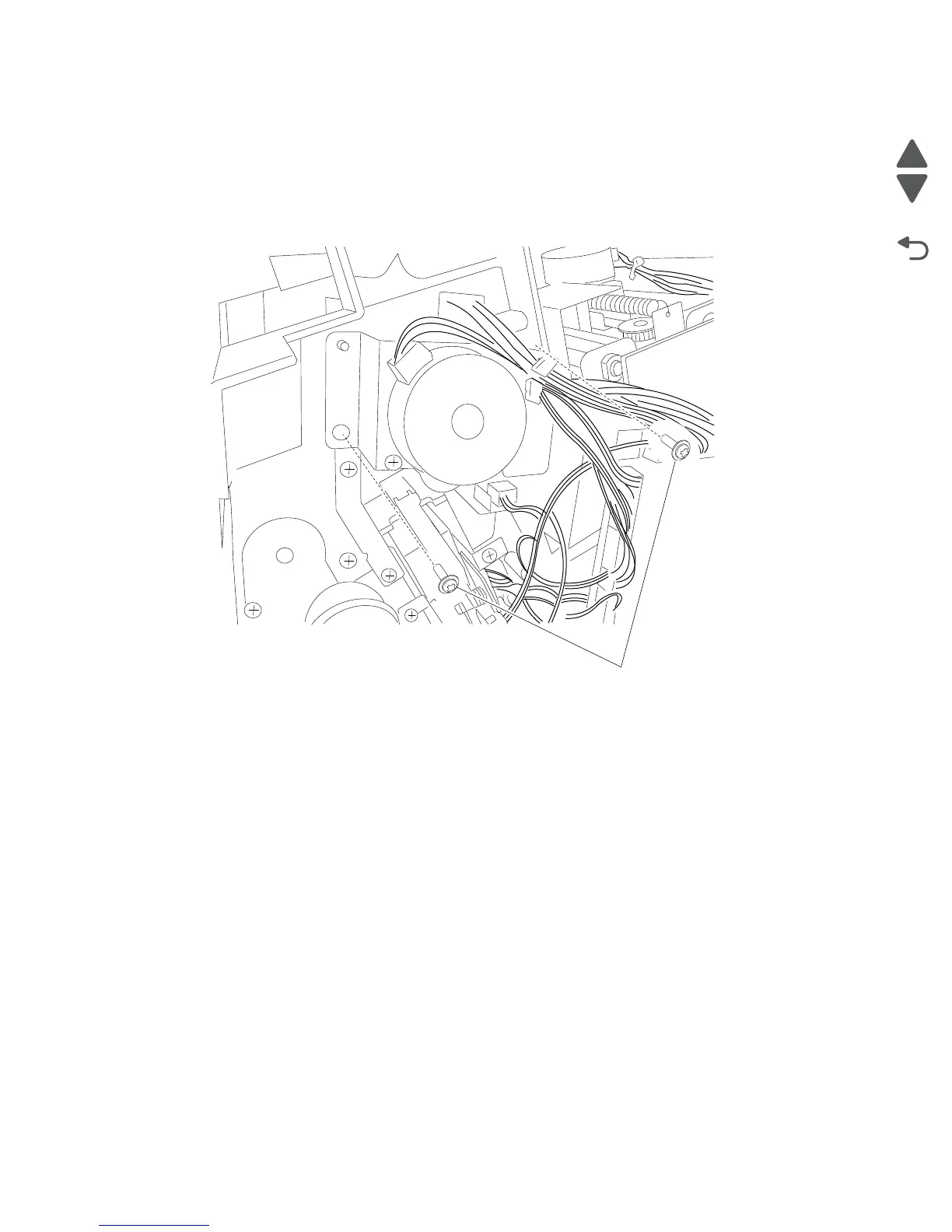

4. Remove the two screws (A) securing the two paddle drive motor assemblies.
5. Remove the paddle drive motor assembly.
A
