Sensor (duplex input) removal (T652, T654, T656)
1. Remove the duplex input sensor assembly. Go to “Duplex input sensor assembly removal (T652, T654,
T656)” on page 4-19.

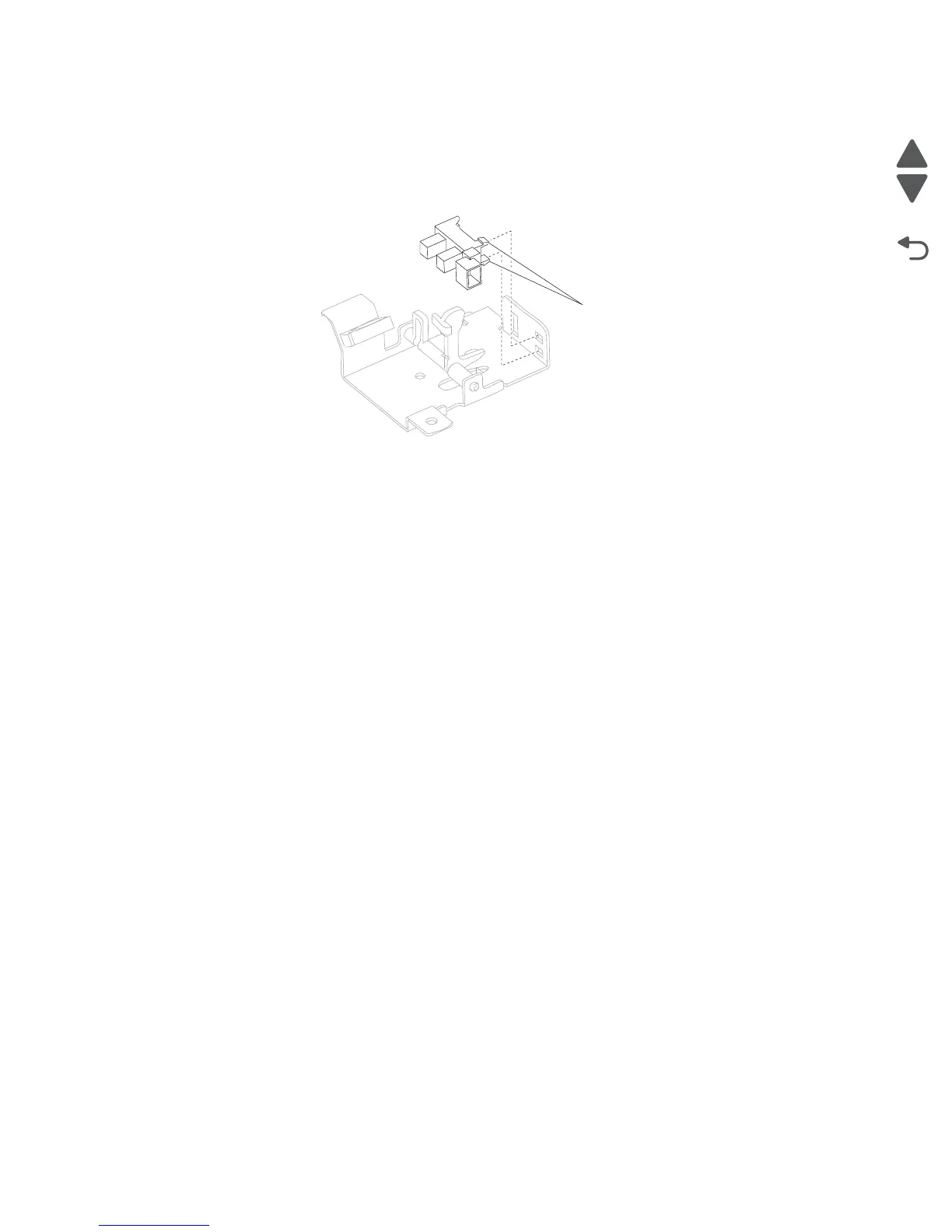

2. Release the hooks (A) securing the senor (duplex media path) to the bracket.
3. Remove the sensor (duplex input).
A
