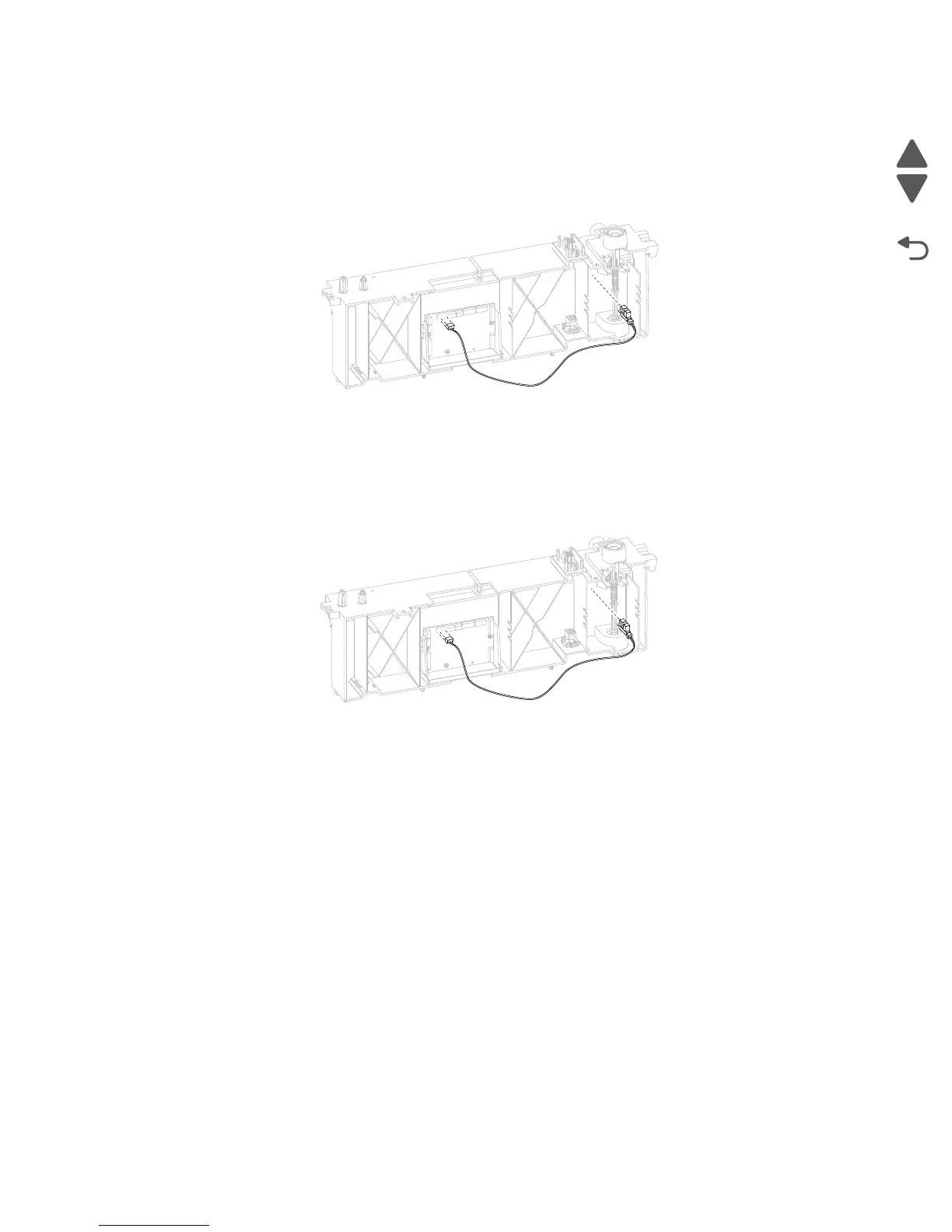

Sensor (pass through) with cable removal
1. Remove the 250-sheet frame assembly. Go to “250-sheet frame assembly removal” on page 4-104.
2. Disconnect the sensor (pass through) cable connector from the 250-sheet controller card.
3. Remove the sensor (pass through) with cable.
Sensor (pass through) with cable removal
1. Remove the 550-sheet frame assembly. Go to “550-sheet frame assembly removal” on page 4-110.
2. Disconnect the sensor (pass through) cable connector from the 550-sheet controller card.
3. Remove the sensor (pass through) with cable.
Tray roller catch assembly removal
1. Remove the media tray catch spring. Go to “Media tray catch spring removal” on page 4-159.
