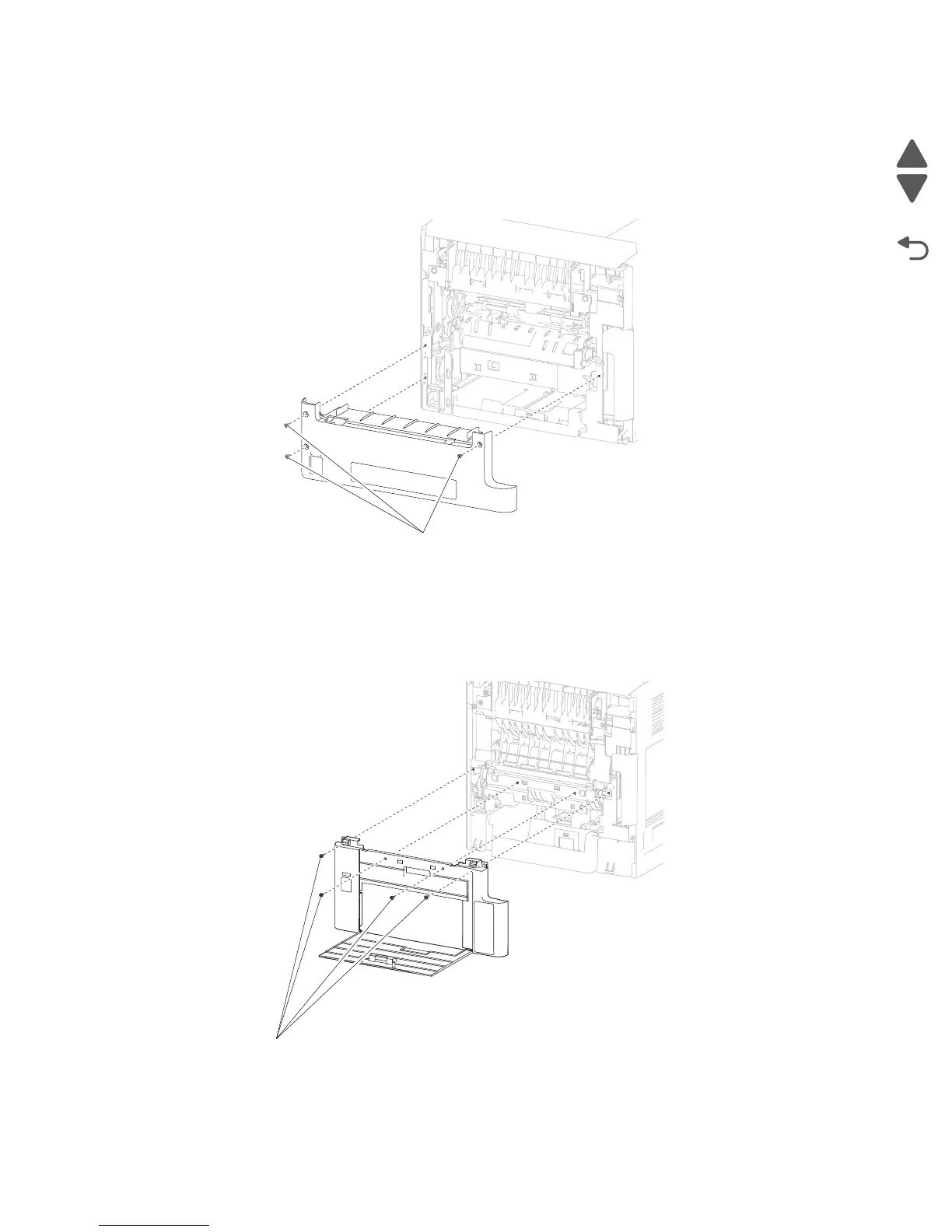

Cover assembly, rear lower removal (T650)
1. Remove the fuser access door assembly. Go to “Fuser access door assembly removal” on page 4-21.
2. Open the rear lower door.
3. Remove the three screws (A) securing the cover assembly, rear lower to the machine.
4. Remove the cover assembly, rear lower.
Cover assembly, rear lower (T652, T654)
1. Open the rear lower door.
2. Remove the four screws (A) securing the cover assembly, rear lower to the machine.
3. Remove the cover assembly, rear lower.
A
A
