Lexmark T650 Series Service Manual

Repair Information 4-113
4062-XXX
Go Back
Previous
Next

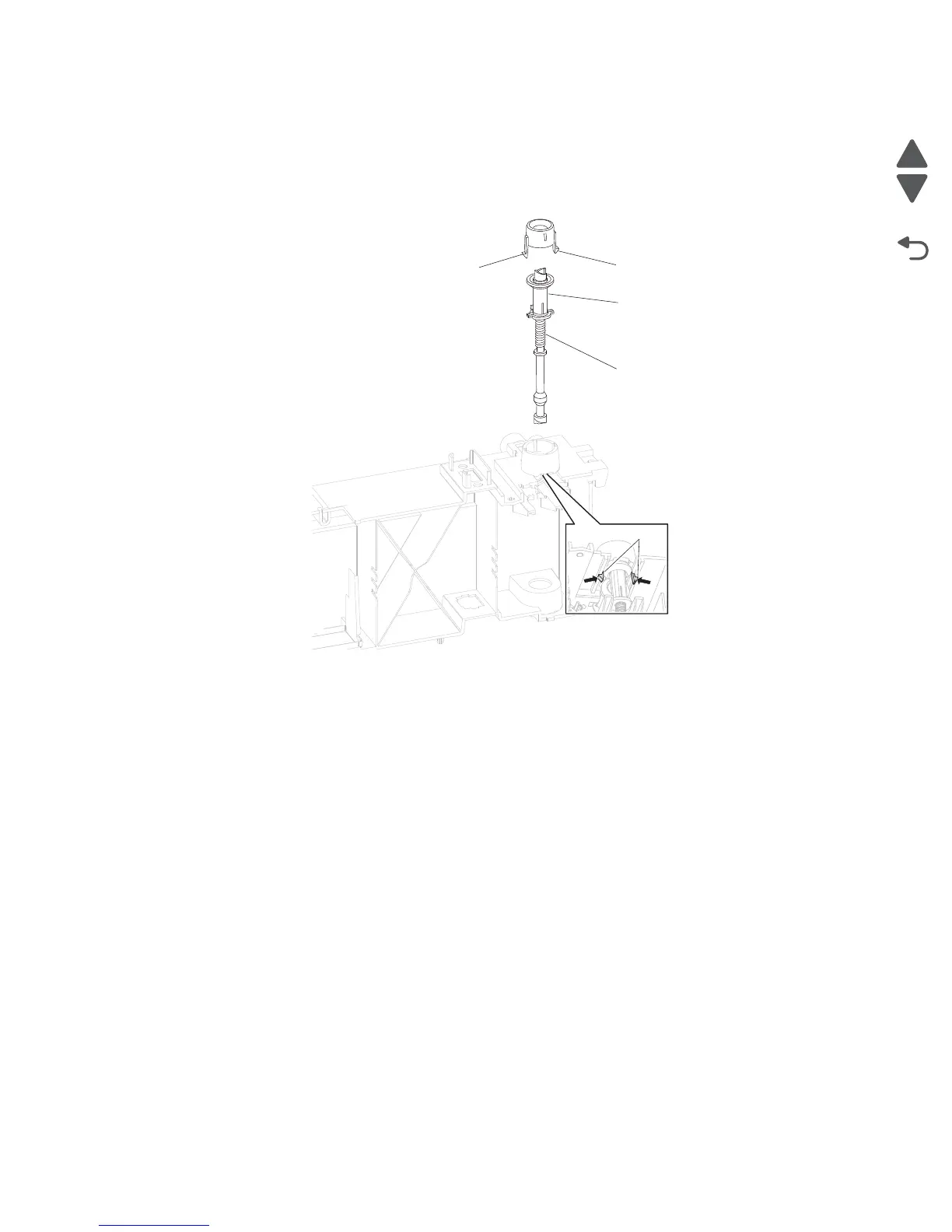

550-sheet option drive shaft with spring removal
1. Remove the 550-sheet frame assembly. Go to “Media size actuator removal” on page 4-160.
2. Pinch the two hooks (A) on the cap, and detach it from the 550-sheet frame.
3. Pull the drive roll gear (B), the shaft with spring (C), and the bevel out through the opening.
4. Remove the 550-sheet option drive shaft with spring.
Anti-tip latch assembly removal
Note: Carefully remove the base machine from the input option tray assembly before proceeding.
The left and right anti-tip latch assemblies are the same, and only one is in a package. The instructions below
are for removing the left latch, but removing the right latch is similar.
1. Remove the 250-sheet media tray assembly. Go to “250-sheet option tray assembly” on page 4-101.
A
A
B
C
A

Lexmark T650 Series Specifications

General

Print Technology	Monochrome Laser
Print Speed	Up to 45 ppm
Print Resolution	1200 x 1200 dpi
Monthly Duty Cycle	Up to 200, 000 pages
Standard Output Capacity	250 sheets
Processor Speed	500 MHz
Connectivity	USB, Ethernet
Maximum Paper Size	8.5 x 14 inches
Operating System Compatibility	Windows, Mac OS, Linux
Memory	128 MB, expandable to 640 MB
Standard Input Capacity	650 sheets
