Adjustments
Polygon and Oscillating printhead mechanical registration adjustment
Do the printhead mechanically registration adjustment whenever you remove or replace the printhead or
loosen the mounting screws.
Install the new printhead with the mounting screws centered in the slots in the printhead frame assembly.
Leave the screws loose enough to allow the printhead to move from side to side within the slots. It is necessary
to perform a mechanical registration adjustment before locking down the three printhead mounting screws.
Note: In the case of paper feed skew, go to “Alignment assembly adjustment” on page 4-4.
To perform the mechanical registration adjustment:
1. Turn the printer off.
2. Press and hold and to enter the diagnostic mode.
3. Turn the printer on, and release the buttons when Performing Self Test displays.
4. Select Registration from the menu.

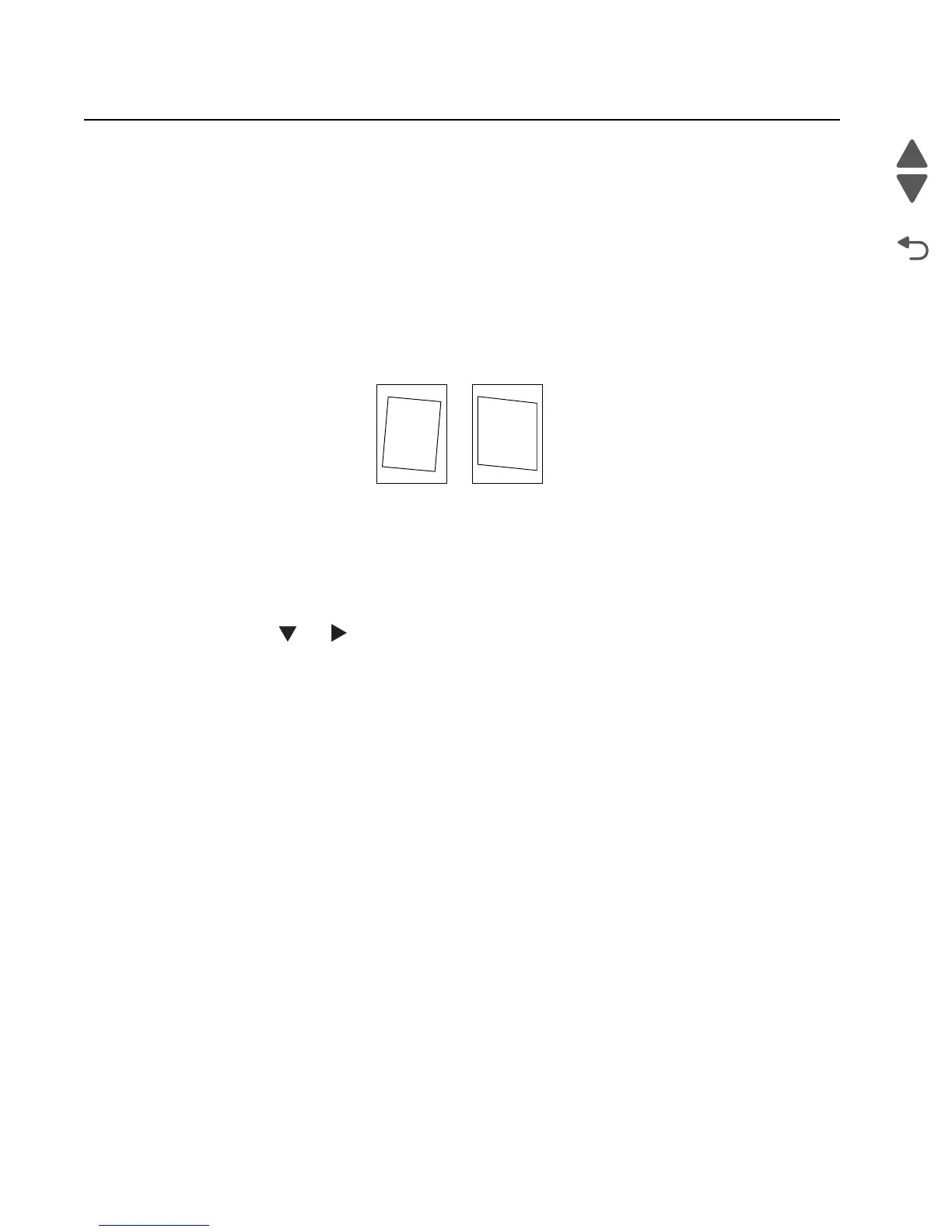

Printhead
misalignment
Paper feed
skew
