MPF pick solenoid assembly removal
Note: The MPF lift plate assembly can be detached and allowed to hang by the harness. The connection does
not need to be disconnected.
1. Remove the MPF lift plate assembly. Go to “MPF lift plate assembly removal” on page 4-36.
2. Remove the side cover, left. Go to “MPF cam gear removal” on page 4-36 or “Side cover, left removal
(T652, T654, T656)” on page 4-66.

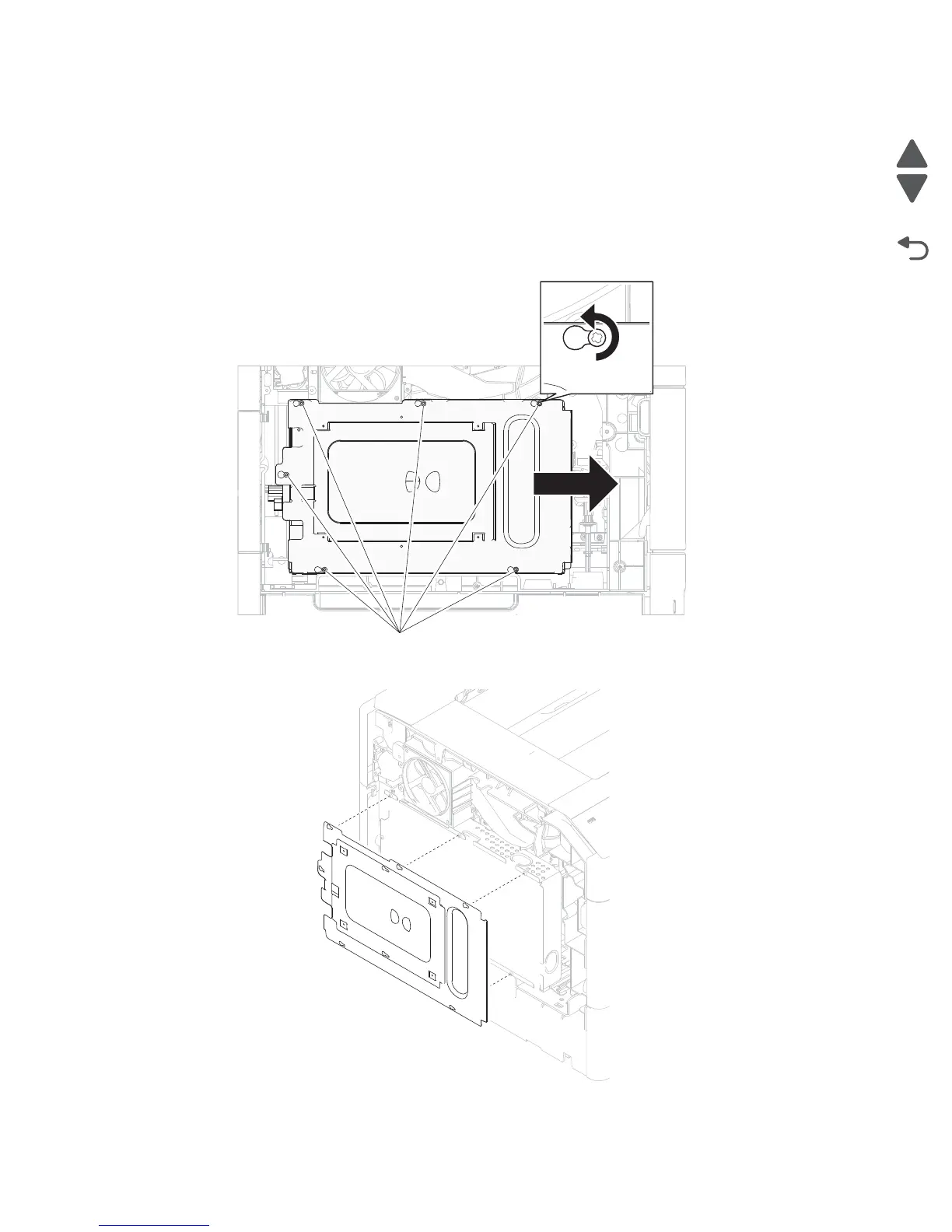

3. Remove the six screws (A) securing the metal cover to the machine.
4. Remove the metal cover.
A
