Lexmark T650 Series - High Capacity Stacker Media Output bin Assembly Removal

Repair Information 4-137
4062-XXX
Go Back
Previous
Next

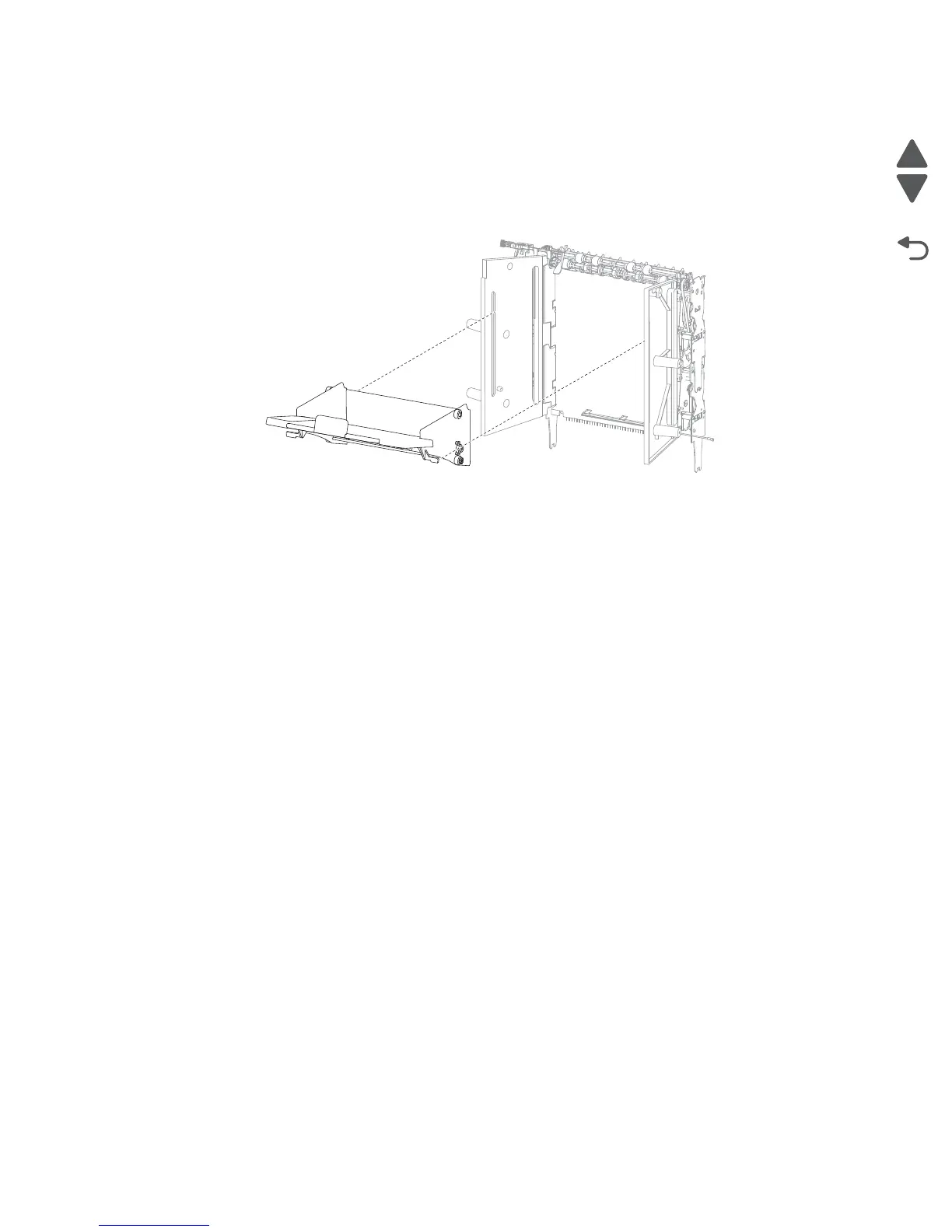

High capacity stacker media output bin assembly removal
1. Remove both the high capacity stacker media output bin recoil springs.
2. Remove the high capacity stacker standard output bin LED.
3. Carefully spread the left side of the high capacity stacker assembly and maneuver the media output bin
from the assembly.
