Lexmark T650 Series - Operator Panel Latch Assembly Removal (T650, T652, T654)

4-42 Service Manual
4062-XXX
Go Back
Previous
Next

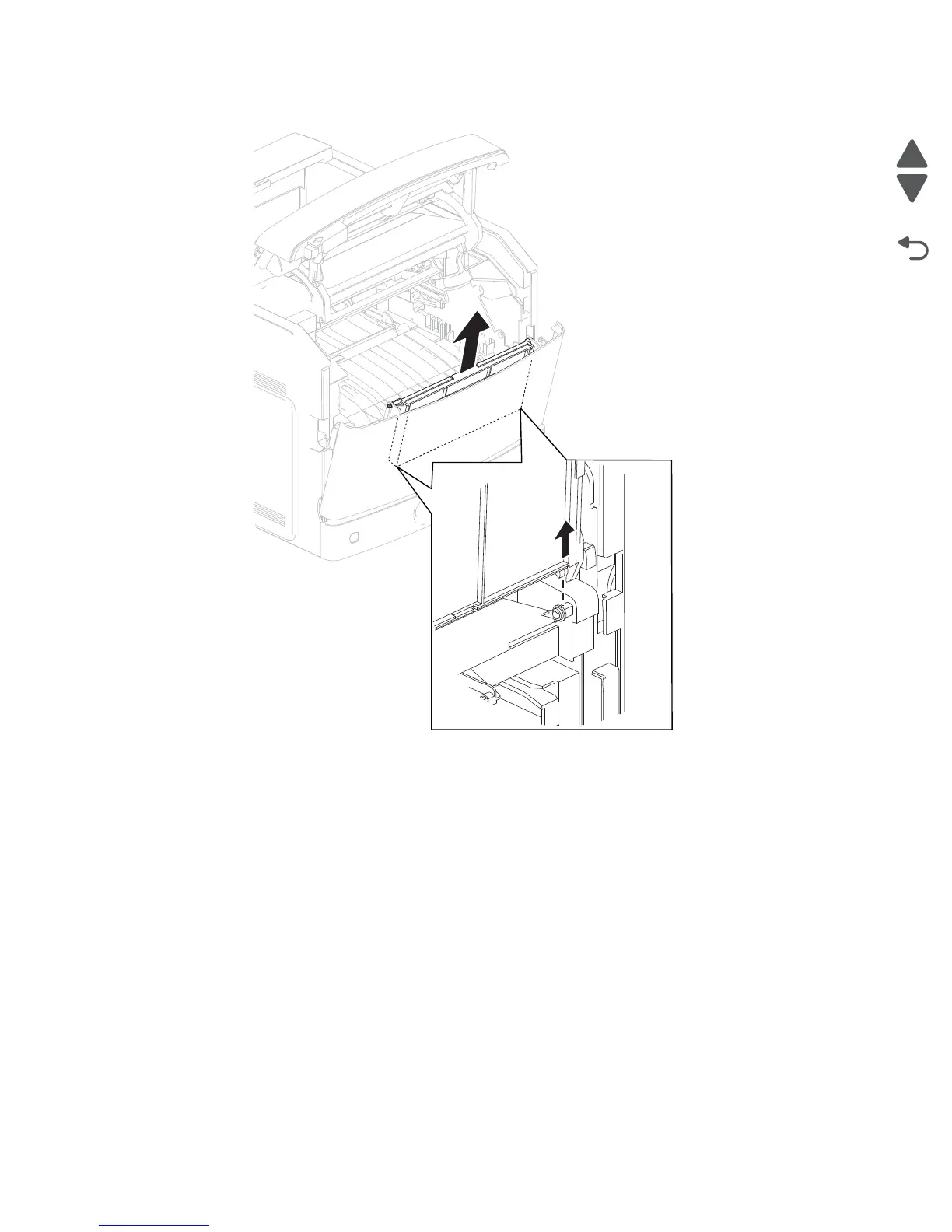

5. Slide the MPF tray door assembly in the direction of the arrow to detach it from the machine.
6. Remove the MPF tray door assembly.
Operator panel latch assembly removal (T650, T652, T654)
1. Open the operator panel door assembly.
2. Remove the four screws (A) securing the operator panel latch assembly to the machine.
