Output expander controller card removal

1. Remove the output expander controller card cover panel. Go to “Output expander controller card cover

panel removal” on page 4-167.

2. Disconnect all harnesses from the controller card.

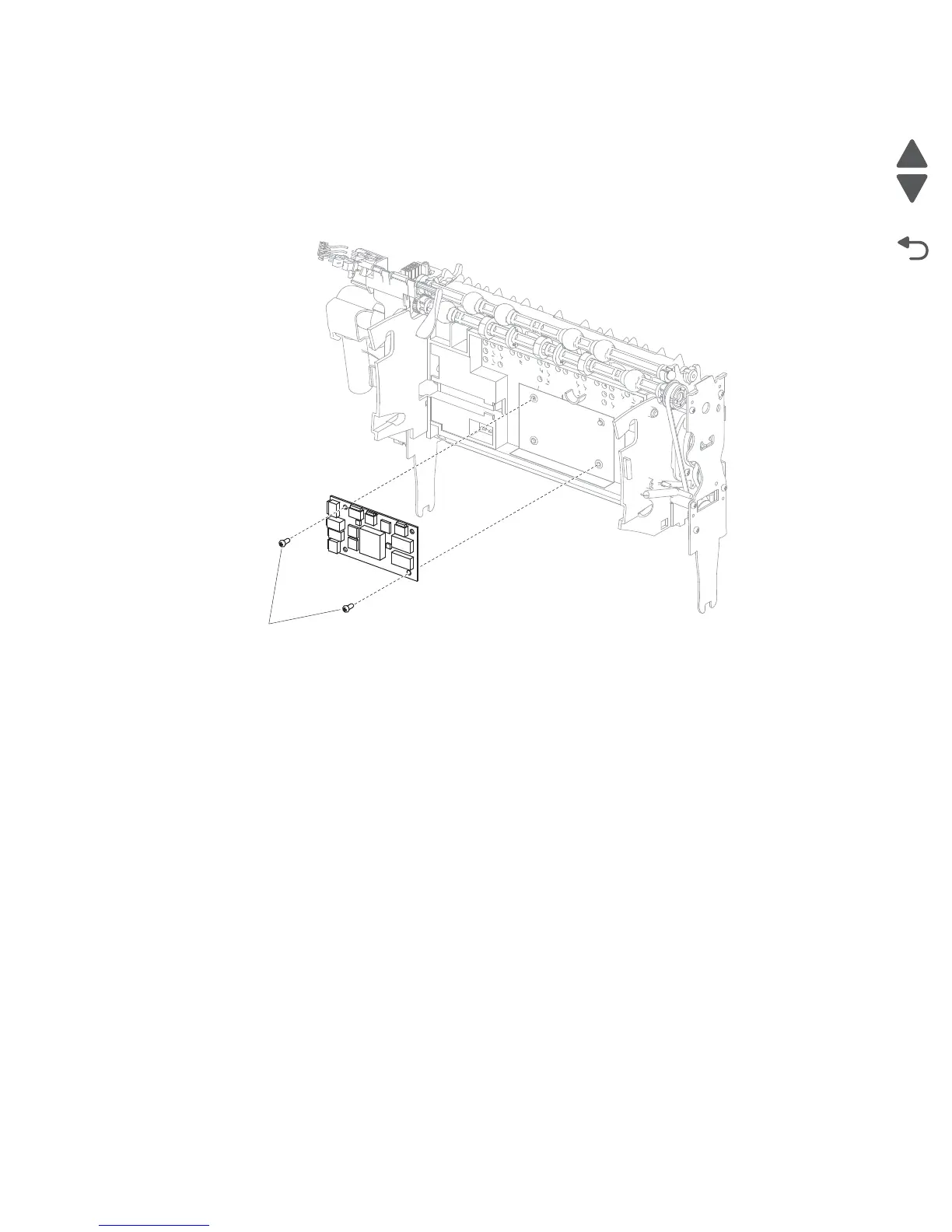

3. Remove the two screws (A) securing the controller card to the frame.

4. Remove the controller card.

Replacement Note: Be sure to replace the interface connectors in their proper orientation as the two have

common connection pins.
