SFP stapler assembly stapler unit assembly removal
1. Remove the right cover. Go to “SFP stapler assembly right cover removal” on page 4-173.
2. Remove the four cable harnesses attached to the stapler unit assembly.

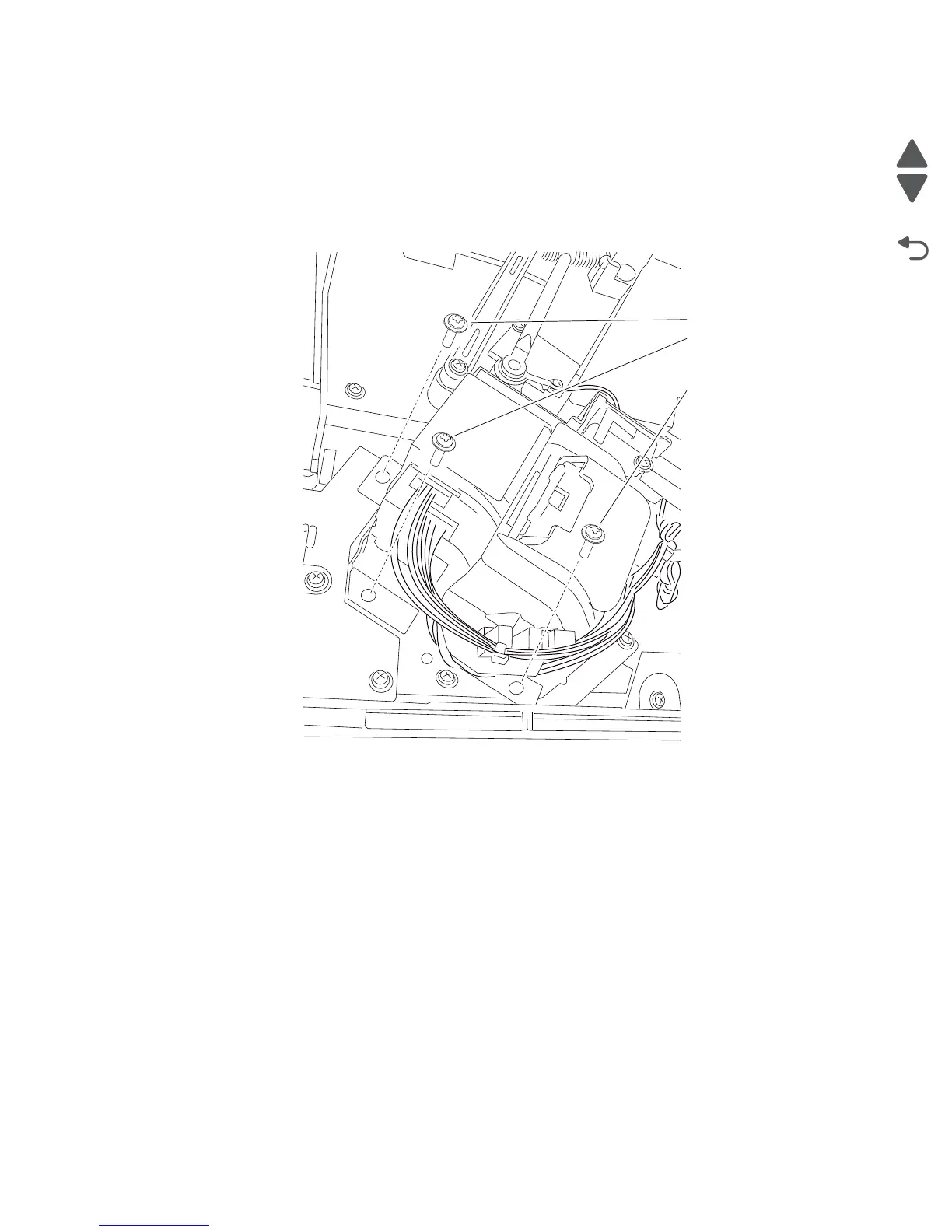

3. Remove the three screws (A) securing the stapler unit assembly.
4. Remove the stapler unit assembly.
