Diagnostic aids 3-67
4062-XXX
Registration
Sensor (input)
The sensor (input) is located just before the print cartridge and can detect whether media exists in the input
path.
Aligner assembly
The aligner assembly is used to feed the media through the input path and to ensure that media is fed through
the machine in a perfectly straight manner and not in a skewed manner. The aligner assembly can be adjusted
to correct media skew issues and should always be adjusted when it is replaced.
Other Envelope 98 x 162 mm
(3.9 x 6.4 in.) to
176 x 250 mm
(6.9 x 9.8 in.)
x
1
This size appears in the Paper Size menu only when the paper source does not support size sensing or
when size sensing is turned off.
2
Only the standard exit bin supports this size.
3
This size setting formats the page for 216 x 356 mm (8.5 x 14 in.) unless the size is specified by the
software application.
4
To support duplexing, the Universal width must be between 148 mm (5.8 in) and 216 mm (8.5 in);
Universal length must be between 182 mm (7.2 in) and 356 mm (14 in).
Paper size Dimensions
250-or 550-sheet
trays (standard
or optional
Optional
2000-sheet
tray
Multipurpose
feeder
Duplex unit

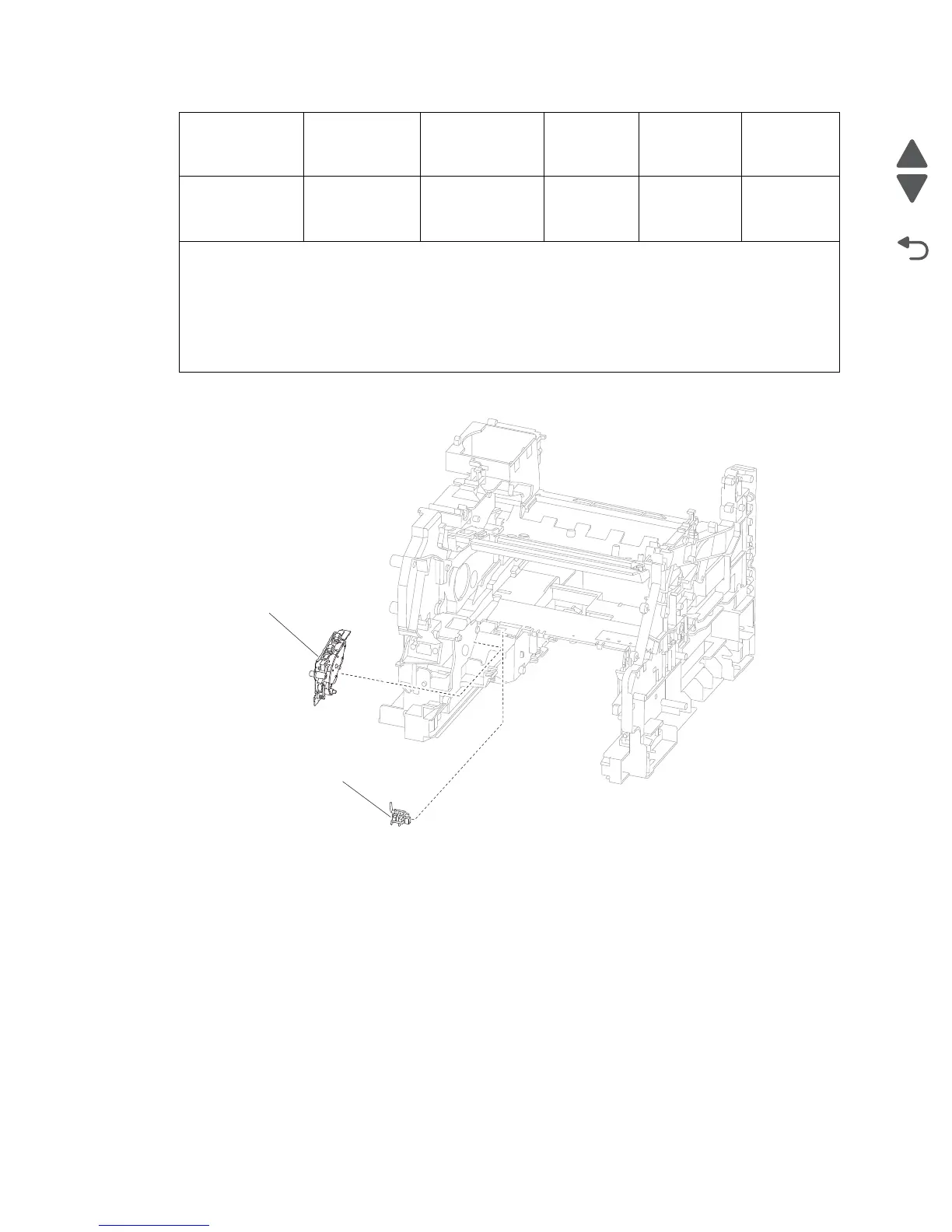

Aligner
assembly
Sensor (input)
To Next Page
