Models T652 and T654 paper path, rolls, and sensors
Functions of main components
When the 250 or 550 sheet input trays are installed under the printer, additional trays are available.
Media tray assembly
It is necessary to adjust the media tray rear guide and media tray side guide of the media tray assembly to
match the media size.
Rear media guide
The rear media tray guide assembly can be adjusted to different media sizes by moving it to the front or rear.
The rear guide should come into contact with the media and hold it in position.
Side guide
The media tray assembly is designed so it can adapt to the media width in the media feed direction by moving
the side guide to the left or right.

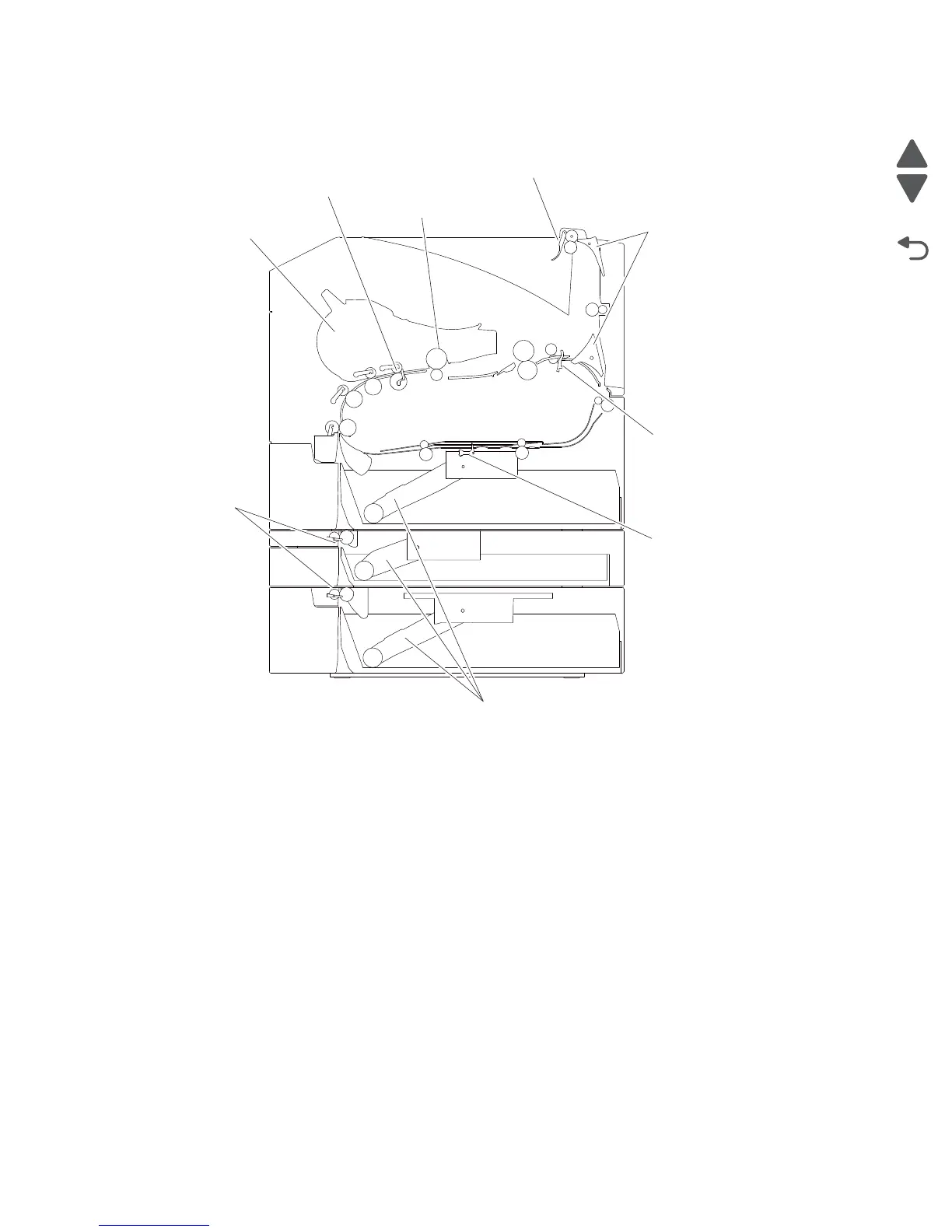

PC cartridge
Sensor (input)
PC drum
Standard bin full actuator
and sensor (standard bin full)
Diverter
Sensor
(duplex input)
Sensor (fuser output)
Sensor (narrow media)
Pick arm
assembly
Sensor (option
pass through)

Lexmark T650 Series Specifications

General

Print Technology	Monochrome Laser
Print Speed	Up to 45 ppm
Print Resolution	1200 x 1200 dpi
Monthly Duty Cycle	Up to 200, 000 pages
Standard Output Capacity	250 sheets
Processor Speed	500 MHz
Connectivity	USB, Ethernet
Maximum Paper Size	8.5 x 14 inches
Operating System Compatibility	Windows, Mac OS, Linux
Memory	128 MB, expandable to 640 MB
Standard Input Capacity	650 sheets
