Lexmark T650 Series Service Manual

3-92 Service Manual
4062-XXX
Go Back
Previous
Next
If media runs out in a media tray assembly, the actuator lowers and the actuator flag, unlocks the sensing area
of the sensor (media empty). The sensor light is transmitted. When the sensing area is blocked (media is
present), the signal is off.
Sensor (media low)
This sensor detects by the actuator position whether media in the media tray assembly is low. When the flag of
the actuator blocks, then unblocks the sensing area of the sensor (media low), the media level is determined to
be low

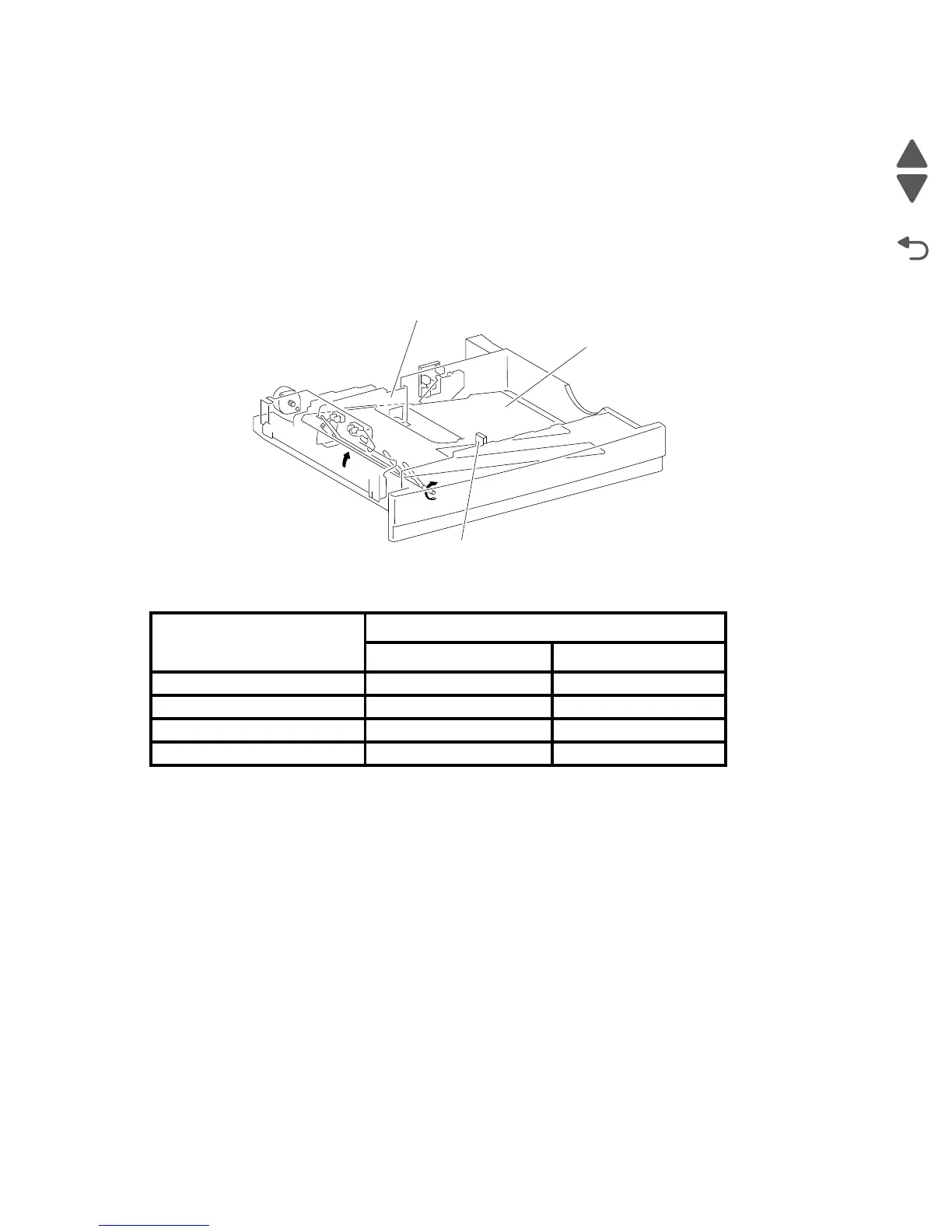

Tray 2 media tray assembly
Note:
Media Size
Analog switch
S/W1 S/W3
No Tray Off Off
B5L/7.25” x 10.5”L Off On
8.5” x 11”L On Off
A4L On On
Rear media guide
Bottom plate
End guide

Lexmark T650 Series Specifications

General

Print Technology	Monochrome Laser
Print Speed	Up to 45 ppm
Print Resolution	1200 x 1200 dpi
Monthly Duty Cycle	Up to 200, 000 pages
Standard Output Capacity	250 sheets
Processor Speed	500 MHz
Connectivity	USB, Ethernet
Maximum Paper Size	8.5 x 14 inches
Operating System Compatibility	Windows, Mac OS, Linux
Memory	128 MB, expandable to 640 MB
Standard Input Capacity	650 sheets
