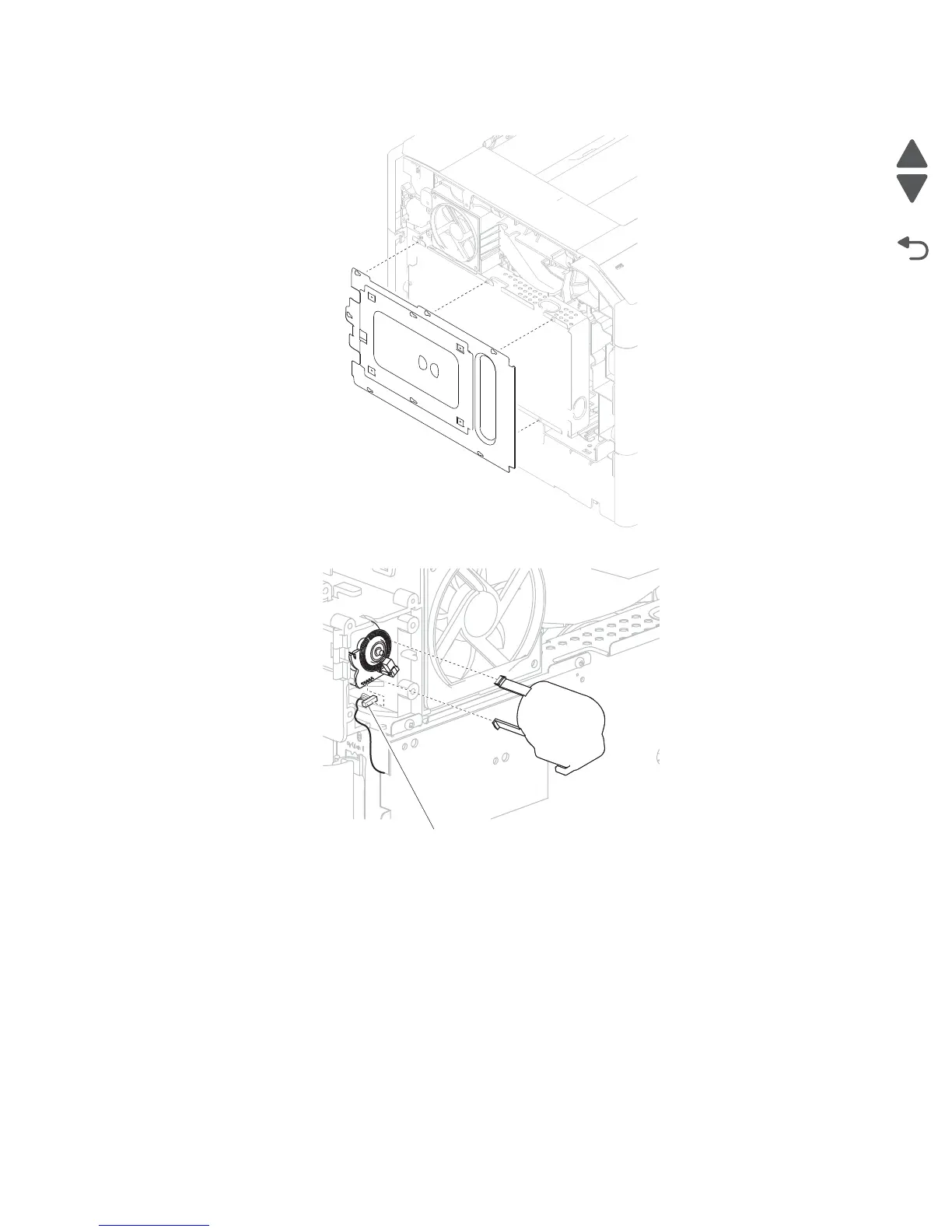

3. Remove the metal cover.
4. Disconnect the connection (B) from the redrive motor assembly.
5. Disconnect the connection (C) from the sensor (standard media bin full).
B
