Lexmark T650 Series Service Manual

Repair Information 4-55
4062-XXX
Go Back
Previous
Next

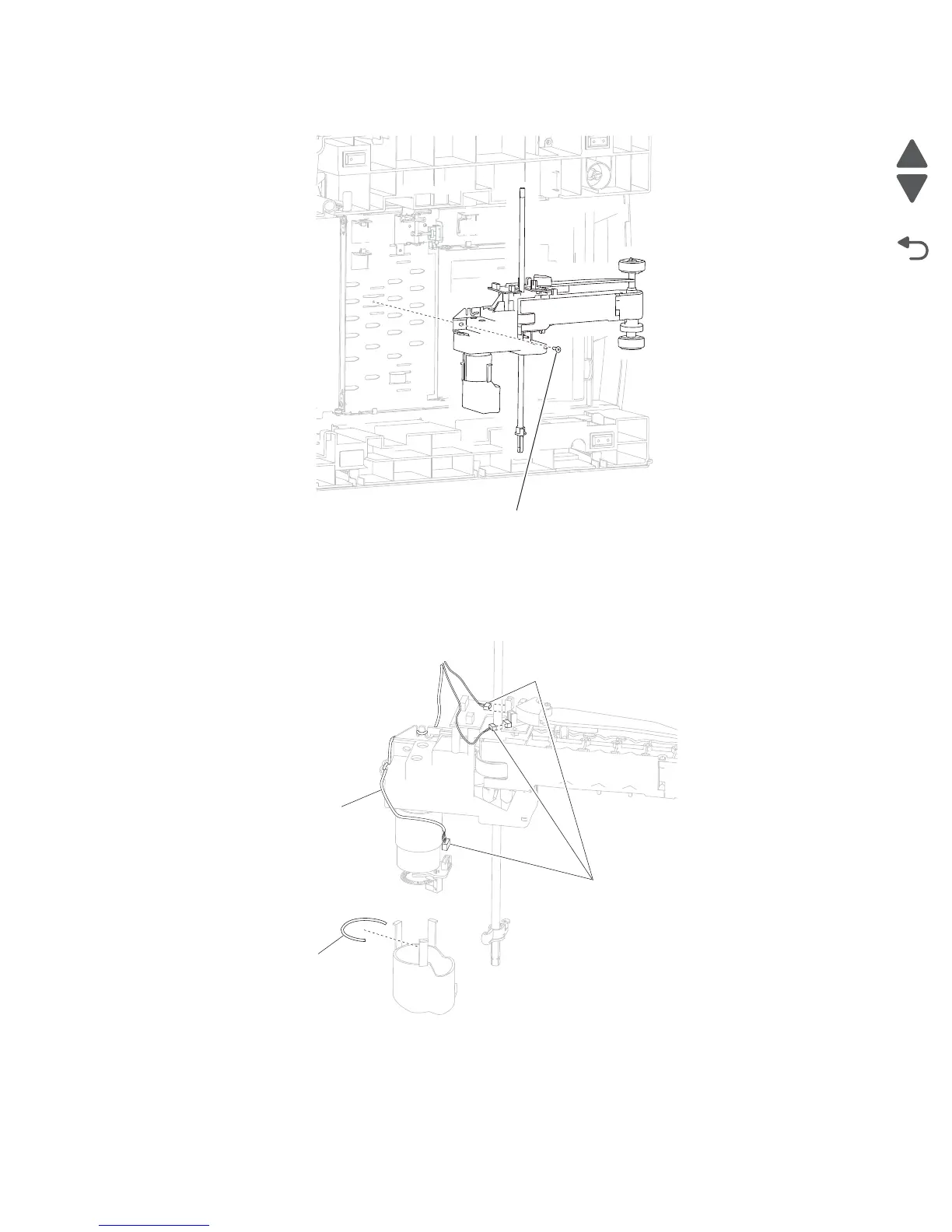

5. Remove the screw (C) securing the pick arm assembly to the machine.
6. Remove the band (D) from the pick arm assembly.
7. Remove the cover from the pick arm assembly.
8. Remove the three connections (E) from the pick arm assembly.
9. Remove the wiring harness (F) from the pick arm assembly.
10. Remove the pick arm assembly. See “Pick arm assembly removal” on page 4-54.
Replacement Warning: When replacing the pick arm assembly, ensure that the harnesses are properly re-
routed.
Replacement Warning: When replacing the pick arm assembly, ensure that the connections are properly
replaced.
C
E
F
D
