Lexmark T650 Series - Page 335

Repair Information 4-15
4062-XXX
Go Back
Previous
Next

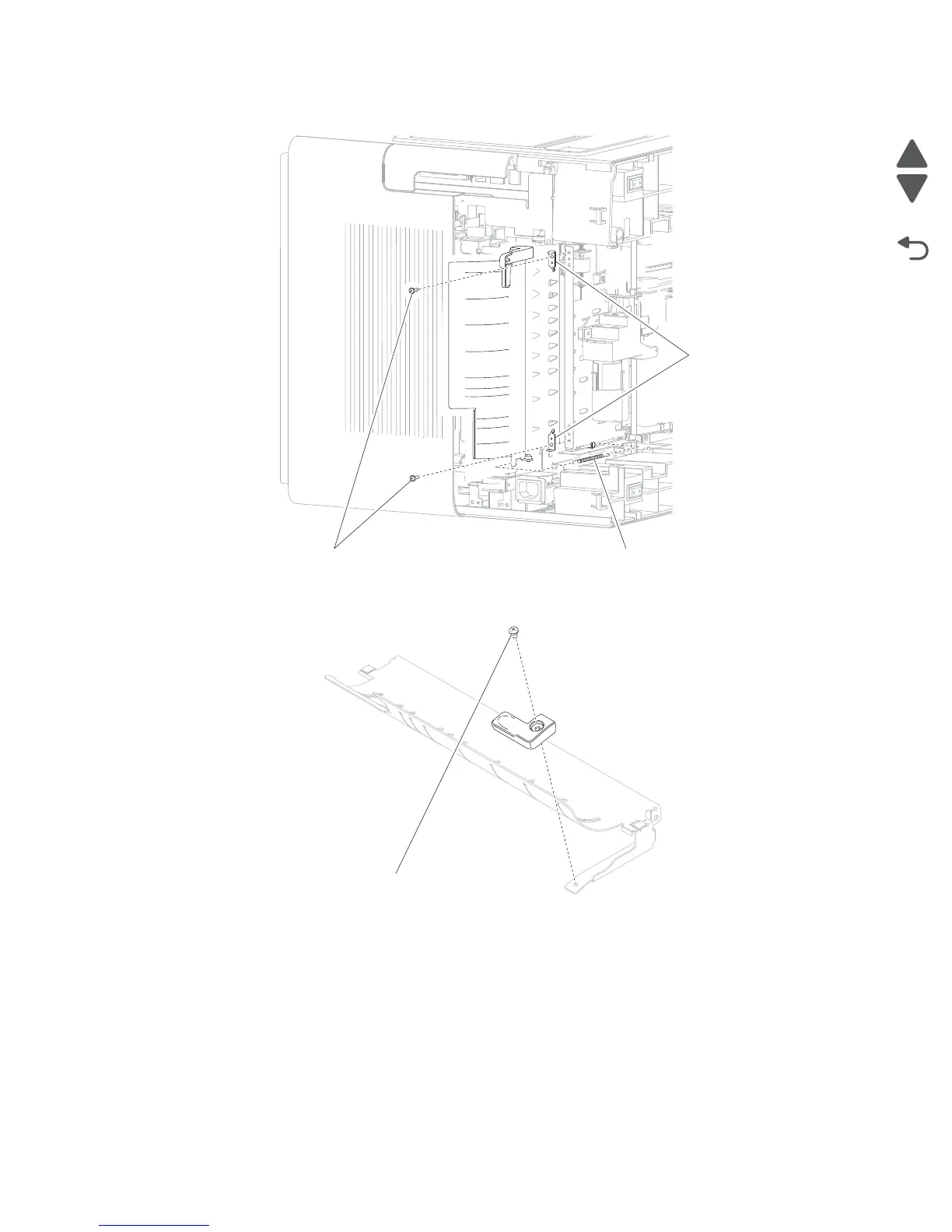

6. Detach the rear duplex guide spring (C).
7. Remove the duplex guide assembly, rear.
8. Remove the screw (D) securing the rear duplex guide handle to the assembly.
9. Remove the duplex guide assembly, rear.
A
B
C
D
