Repair Information 4-17
4062-XXX
Duplex cooling fan removal (T652, T654, T656)
1. Remove the side cover, right. See “Side cover, right removal (T652, T654, T656)” on page 4-67.

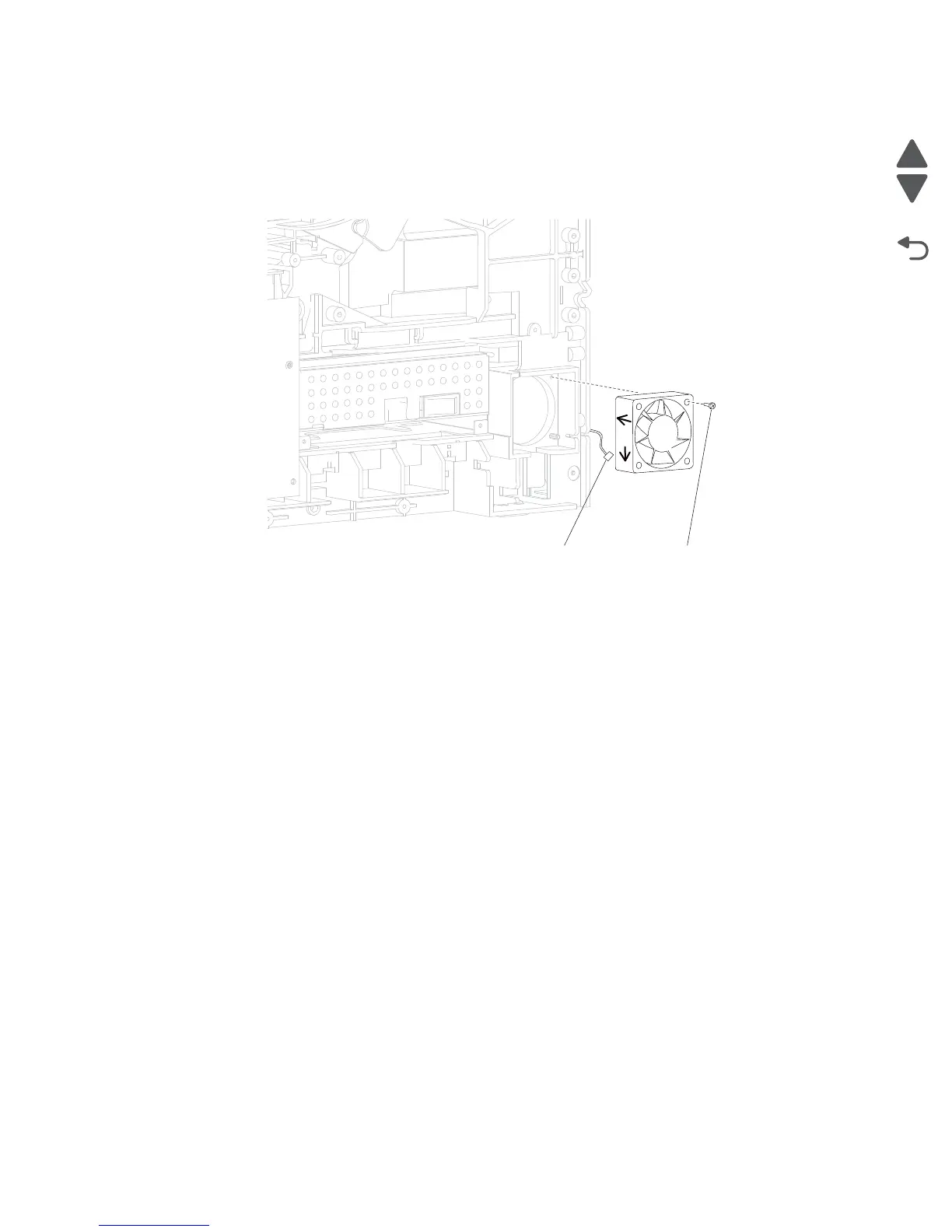

2. Remove the screw (A) securing the duplex cooling fan to the machine.
3. Disconnect the connector (B) from the duplex cooling fan.
4. Remove the duplex cooling fan.
Replacement Warning: When replacing the duplex cooling fan, ensure that it is installed as shown in the
picture.
