Repair Information 4-45
4062-XXX
Go Back
Previous
Next

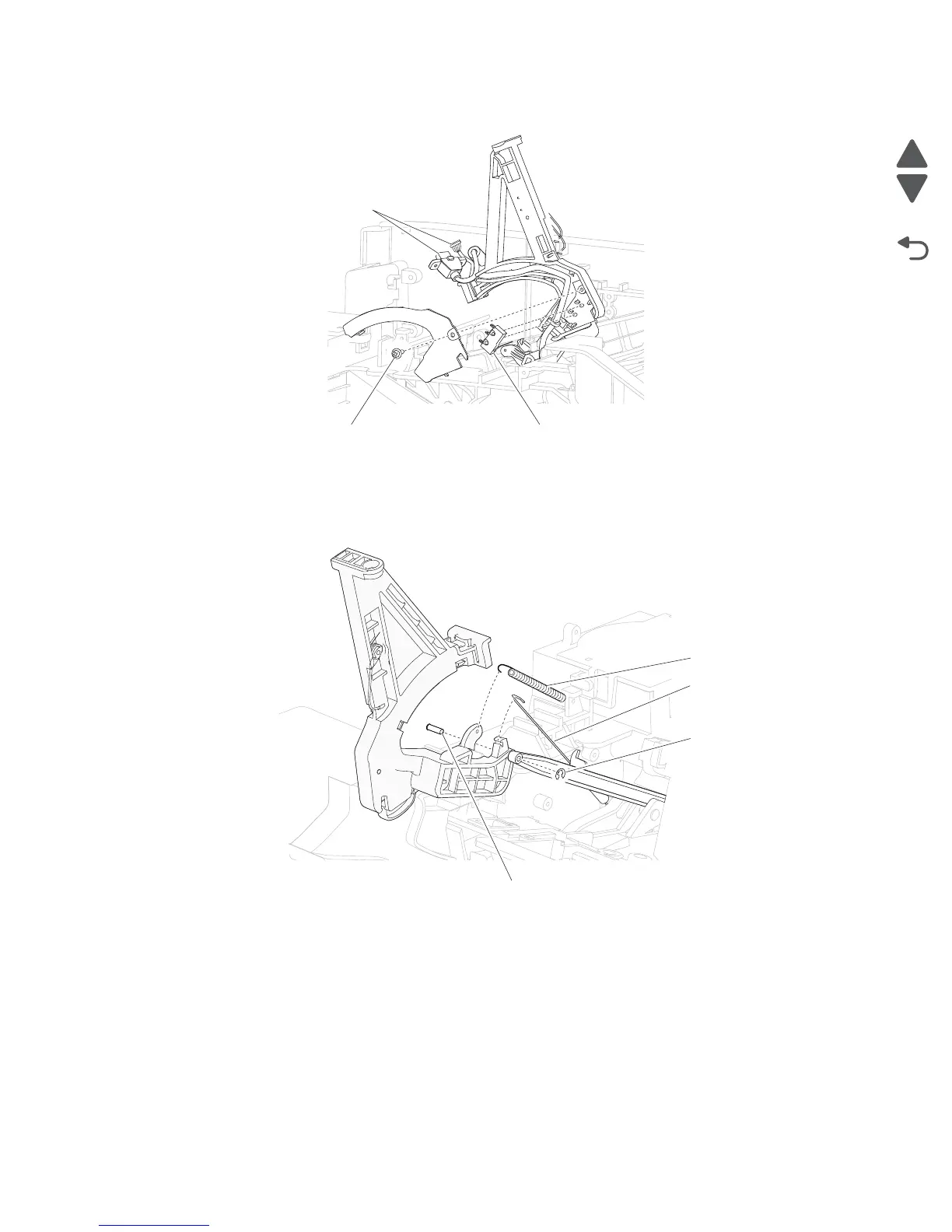

5. Remove the harnesses (C) from the operator panel hinge assembly, left.
6. Detach the spring (D) from the operator panel hinge assembly, left.
7. Detach the spring (E) from the operator panel hinge assembly, left.
8. Remove the E-clip (F) from the operator panel hinge assembly, left.
9. Remove the pin (G) from the operator panel hinge assembly, left.
A B
C
D
E
F
G
