Repair Information 4-77
4062-XXX

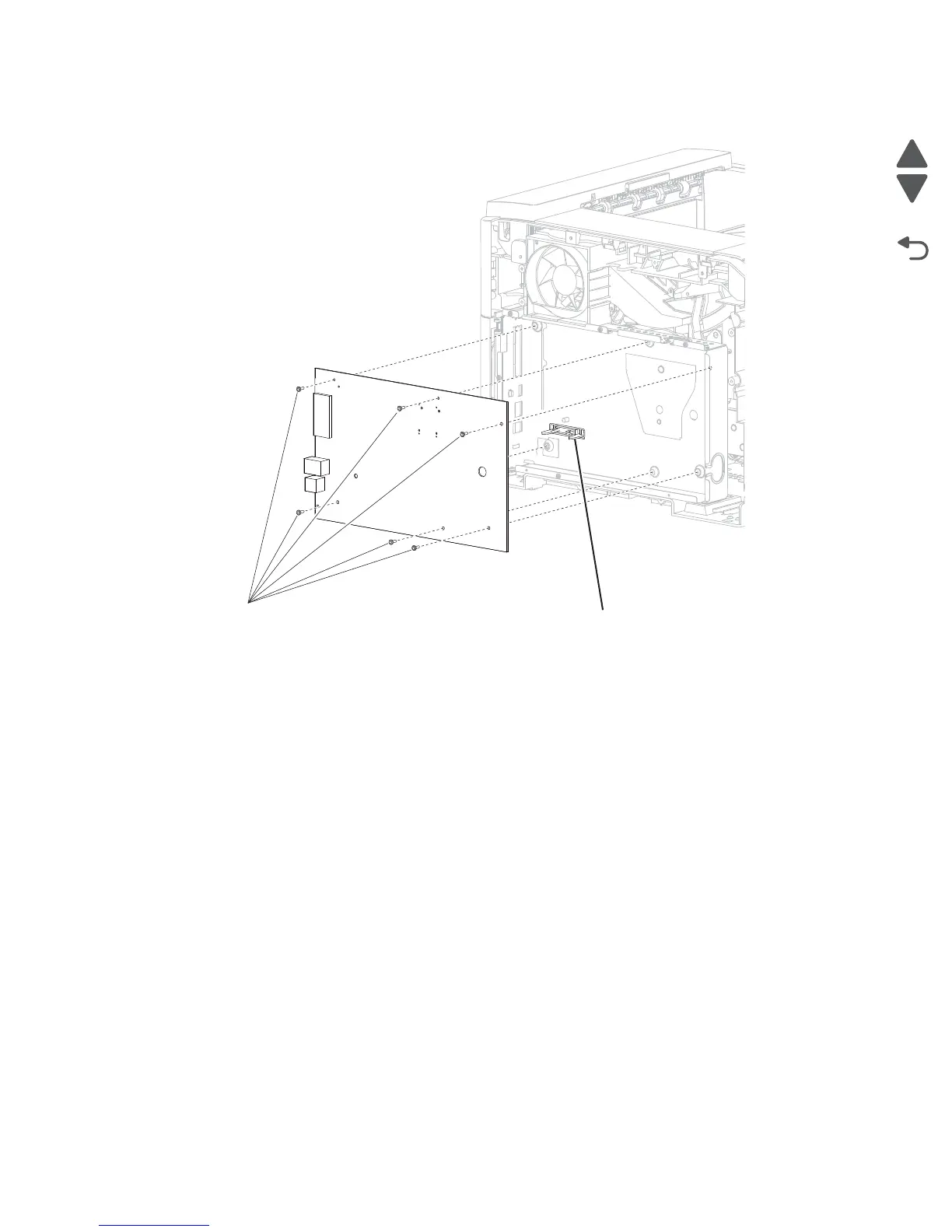

WARNING: When removing the system card assembly from the machine, ensure that the LVPS assembly
connection (C) does not become damaged.
7. Remove the system card assembly.
8. Remove any remaining screws securing the system card assembly to the metal box.
9. Remove the system card assembly.
Replacement Warning: Ensure that all ground wires are properly replaced.
Replacement Warning: When replacing the system card assembly, ensure that the LVPS assembly
connections (C) are properly aligned and inserted into the system card assembly, or damage will occur.
