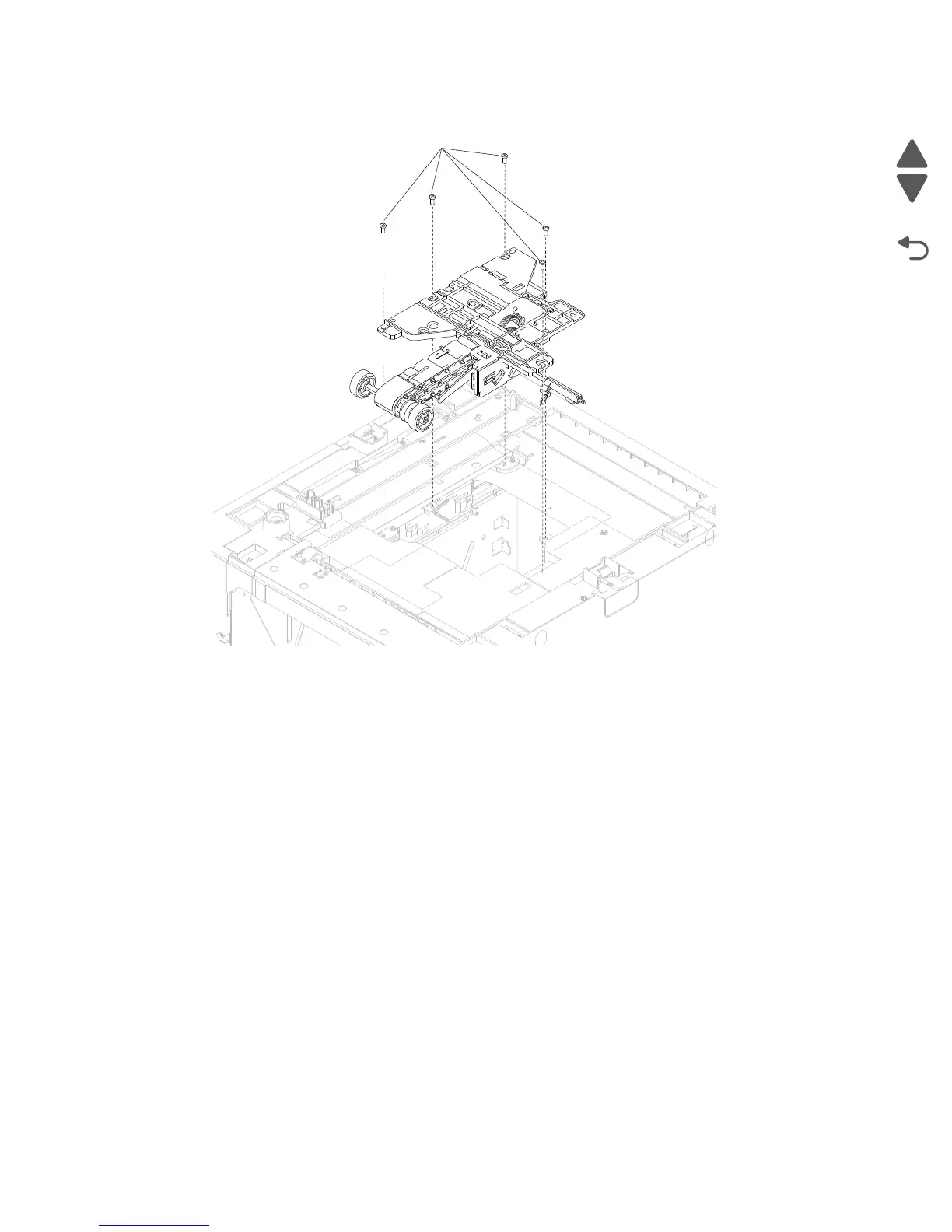

4. Remove the five screws (A) securing the HCIT pick arm bracket assembly.
5. Remove the HCIT pick arm bracket assembly from the drawer by slightly lifting and removing it.
A
