MacDon FlexDraper FD75 - Page 102

214323 84 Revision B
1024152
A
B

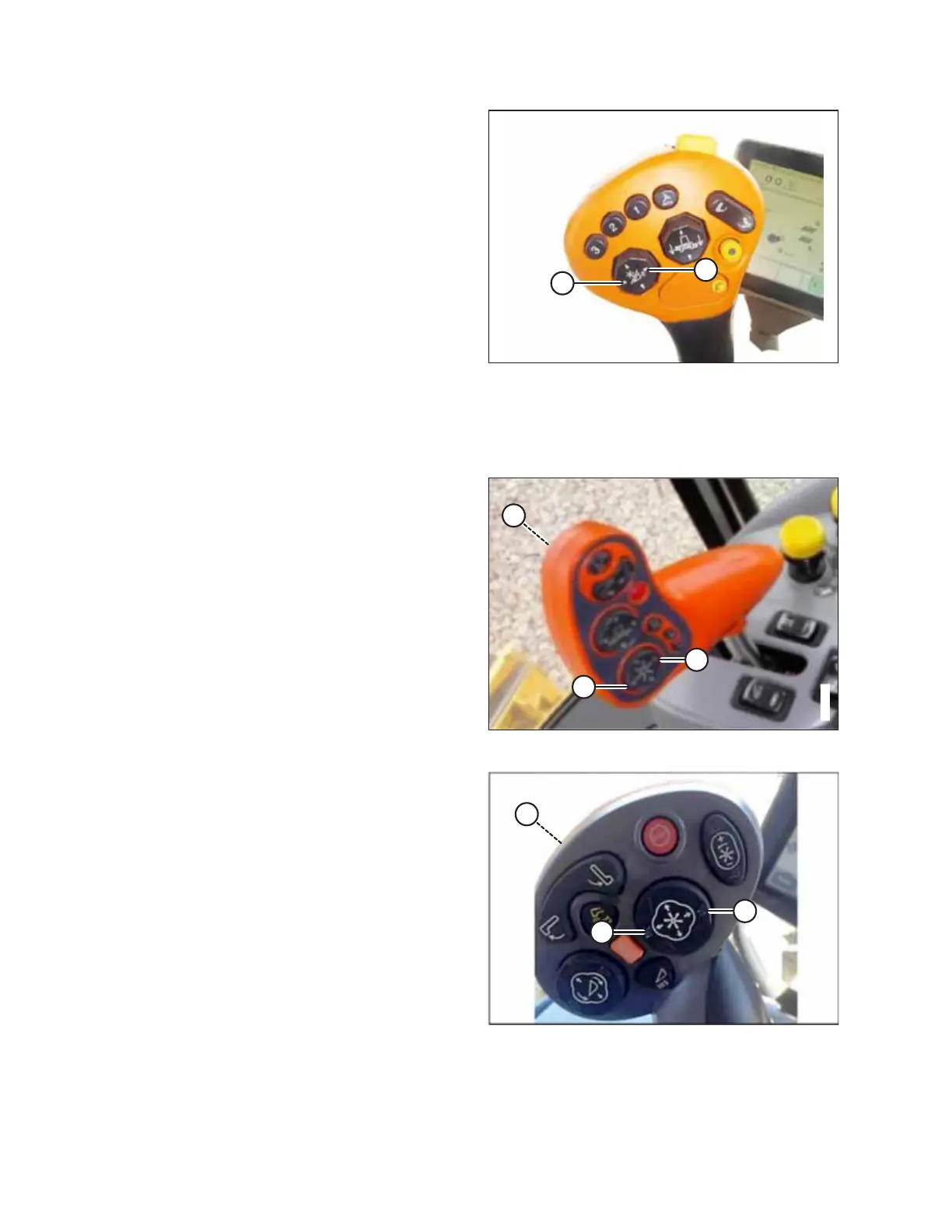

Figure 3.94: John Deere Control Handle
2. To tilt the header forward (steeper angle), press switch (A).
To tilt the header back (shallower angle), press switch (B).
New Holland combines:
New Holland combines use control handle switches to adjust the center-link to change the header angle.
1024039
A
B
C
Figure 3.95: New Holland CR/CX Controls
1. Press and hold SHIFT button (A) on the backside of the
control handle and press switch (B) to tilt the header
forward (steeper angle) or switch (C) to tilt the header back
(shallower angle).
102403910240391024040
A
B
C
Figure 3.96: New Holland CR/CX Controls
OPERATION
