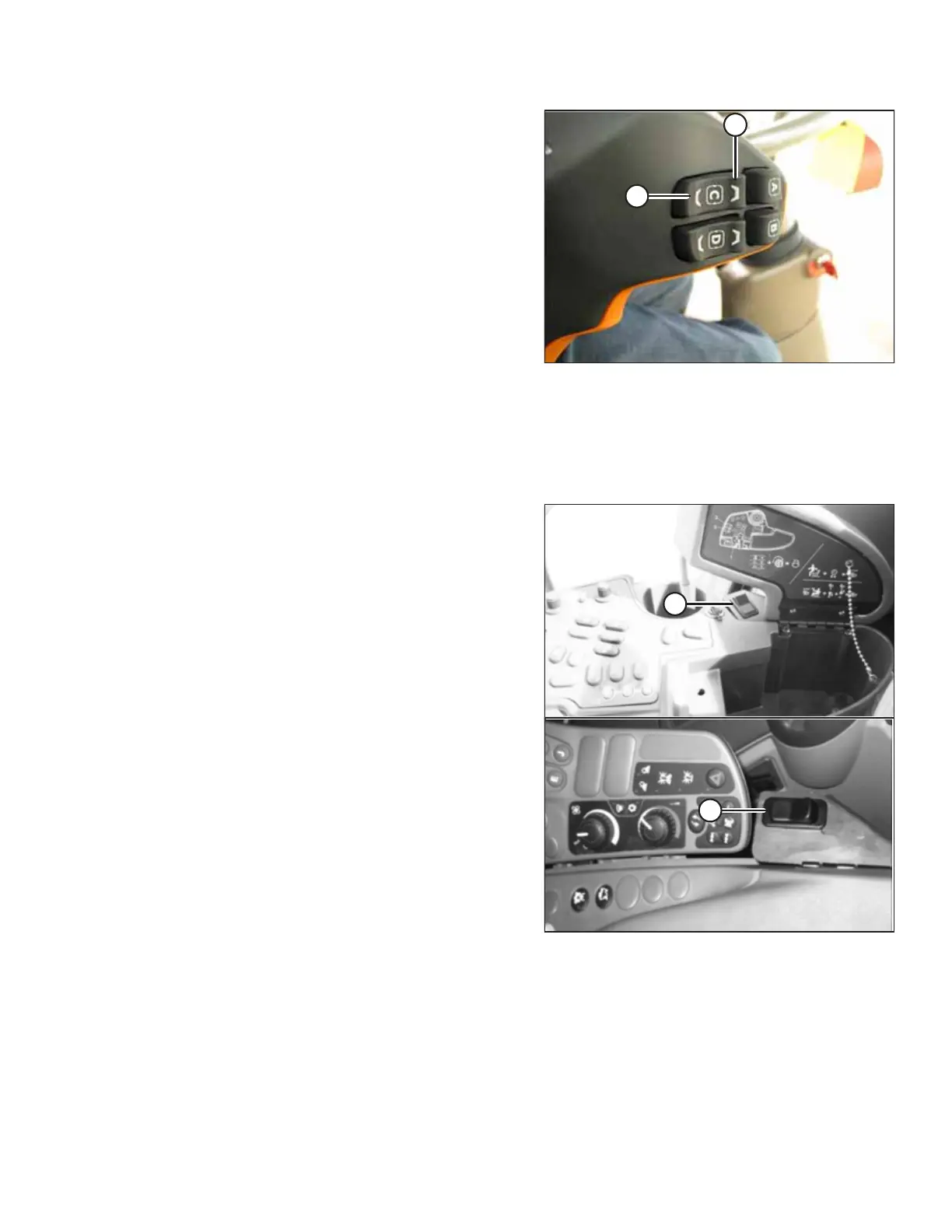

Figure 3.92: John Deere 700 Feeder House Fore-Aft
Tilt Controls
1. To tilt the header forward (steeper angle), press switch (A).
To tilt the header back (shallower angle), press switch (B).
John Deere (except S700 Series): Other John Deere combines use a combination of the reel fore-aft switches on the
control handle and a Dealer-installed auxiliary rocker switch which toggles between reel fore-aft and header tilt
functionality.
Figure 3.93: John Deere Consoles
1. Press reel fore-aft / header tilt switch (A) on the console
into HEADER TILT position.
