MacDon FlexDraper FD75 - Page 100

214323 82 Revision B
1023954
A
B

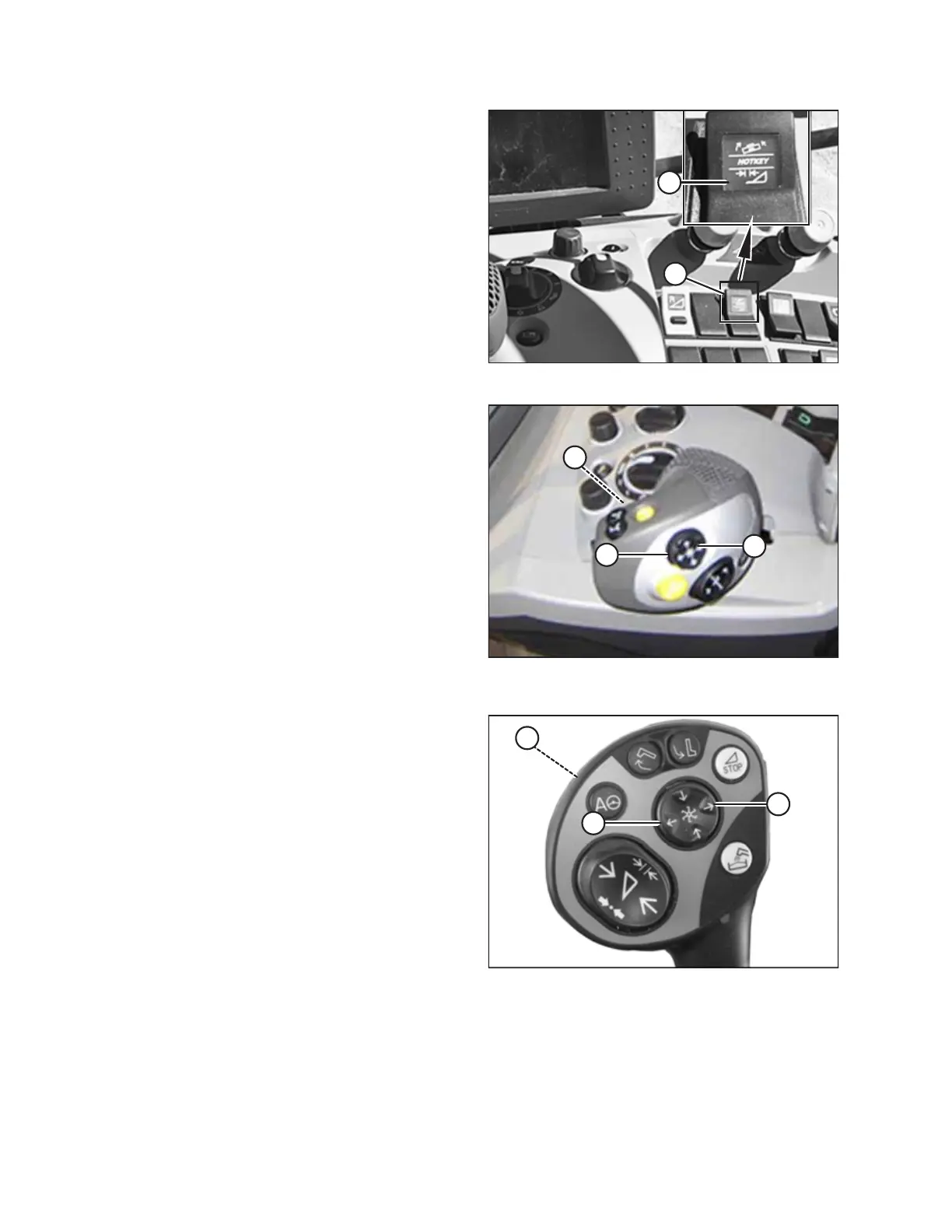

Figure 3.89: CLAAS 700 Console
1. Press HOTKEY switch (A) on the operator’s console to deck
plate position (the header icon [B] with the arrows pointing
to each other).
1024169
C
B
A
Figure 3.90: CLAAS 5000, 6000, 7000 or 8000
Control Handle
1024348
C
B
A
Figure 3.91: CLAAS 500, 600, or 700 Control Handle
2. Press and hold switch (A) on the rear of the control handle.
3. To tilt the header forward (steeper angle), press switch (C).
To tilt the header back (shallower angle), press switch (B).
John Deere combines:
John Deere S700: S700 Series combines can use a feeder house deckplate tilting system for feeder house fore-aft
adjustment. Set the deckplate at a mid-point position, and use the MacDon fore-aft header tilt system.
IMPORTANT:
Damage to equipment may occur if both the deckplate and MacDon header tilt are adjusted to their maximum range.
OPERATION
