MacDon FlexDraper FD75 - Page 99

214323 81 Revision B
1023886
A

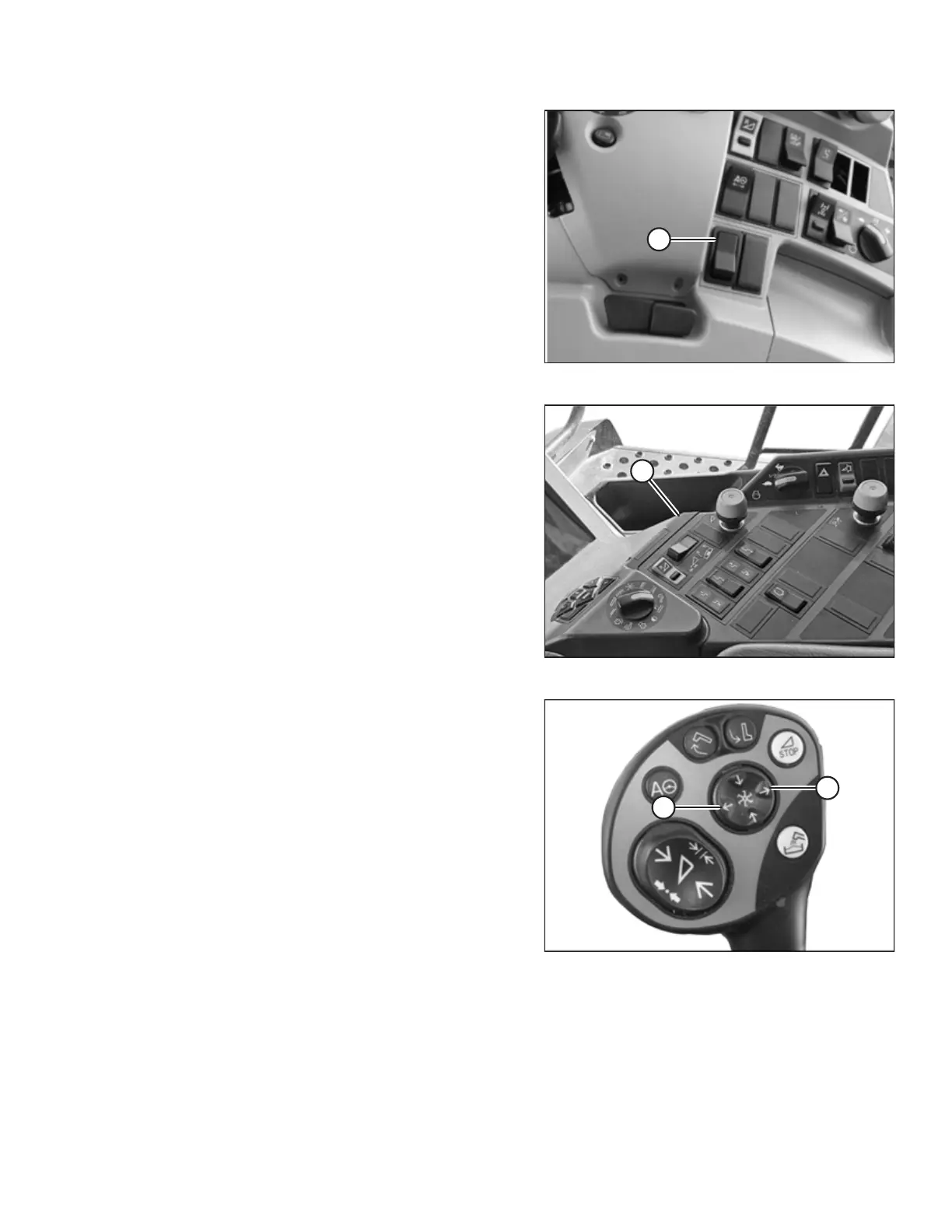

Figure 3.86: CLAAS 600 Console
1024167
A
Figure 3.87: CLAAS 500 Console
1. Press reel fore-aft / header tilt switch (A) on console into
HEADER TILT position.
1024151
A
B
Figure 3.88: CLAAS 500 Control Handle
2. Press switch (A) to tilt header forward (steeper angle) or
switch (B) to tilt header back (shallower angle).
CLAAS (with factory-installed fore-aft / header tilt switch): Newer CLAAS combines use a combination of the reel fore-aft
switches on the control handle and a factory-installed auxiliary rocker switch which toggles between reel fore-aft and
header tilt functionality.
OPERATION
