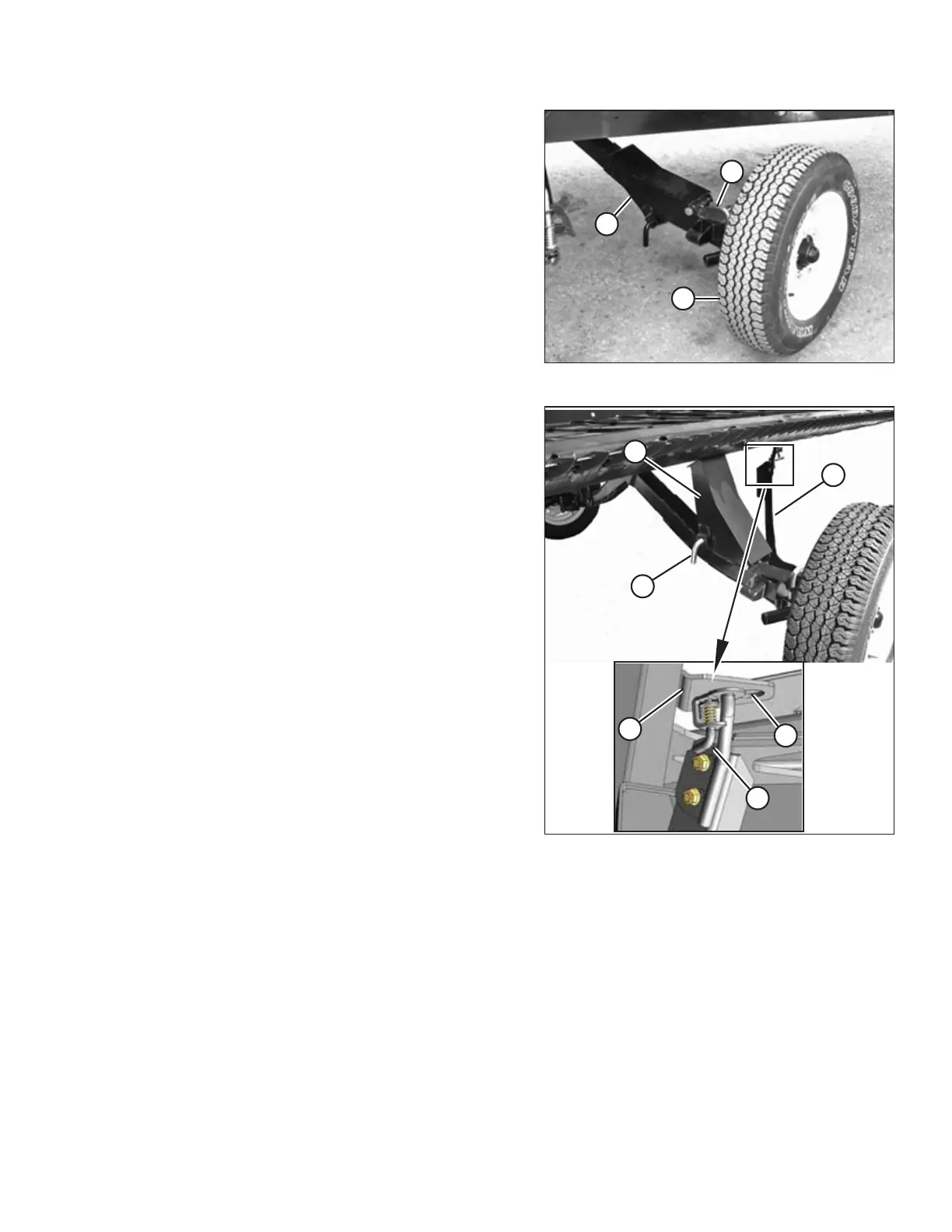

Figure 3.166: Right Rear Wheel
10. Lock wheel (A) with pin (B). Move right axle (C) to the front
of the header.
Figure 3.167: Right Rear Wheel Position
11. Remove pin (A), raise support (B) to the position shown,
and reinsert the pin.
IMPORTANT:
Ensure pin (A) engages the tube on the axle.
12. Swing brace (C) into the position shown and insert the
brace into slot (D) behind the cutterbar. Position the brace
so that pin (E) engages the hole in bracket (F). The right
hand wheel is now in the transport position.
13. Disengage the header cylinder lift stops.
14. Detach the header’s hydraulic and electrical connections
from the combine. For instructions, refer to 5 Header
Attachment/Detachment, page 289.
15. Start the combine and lower the header to the ground.
