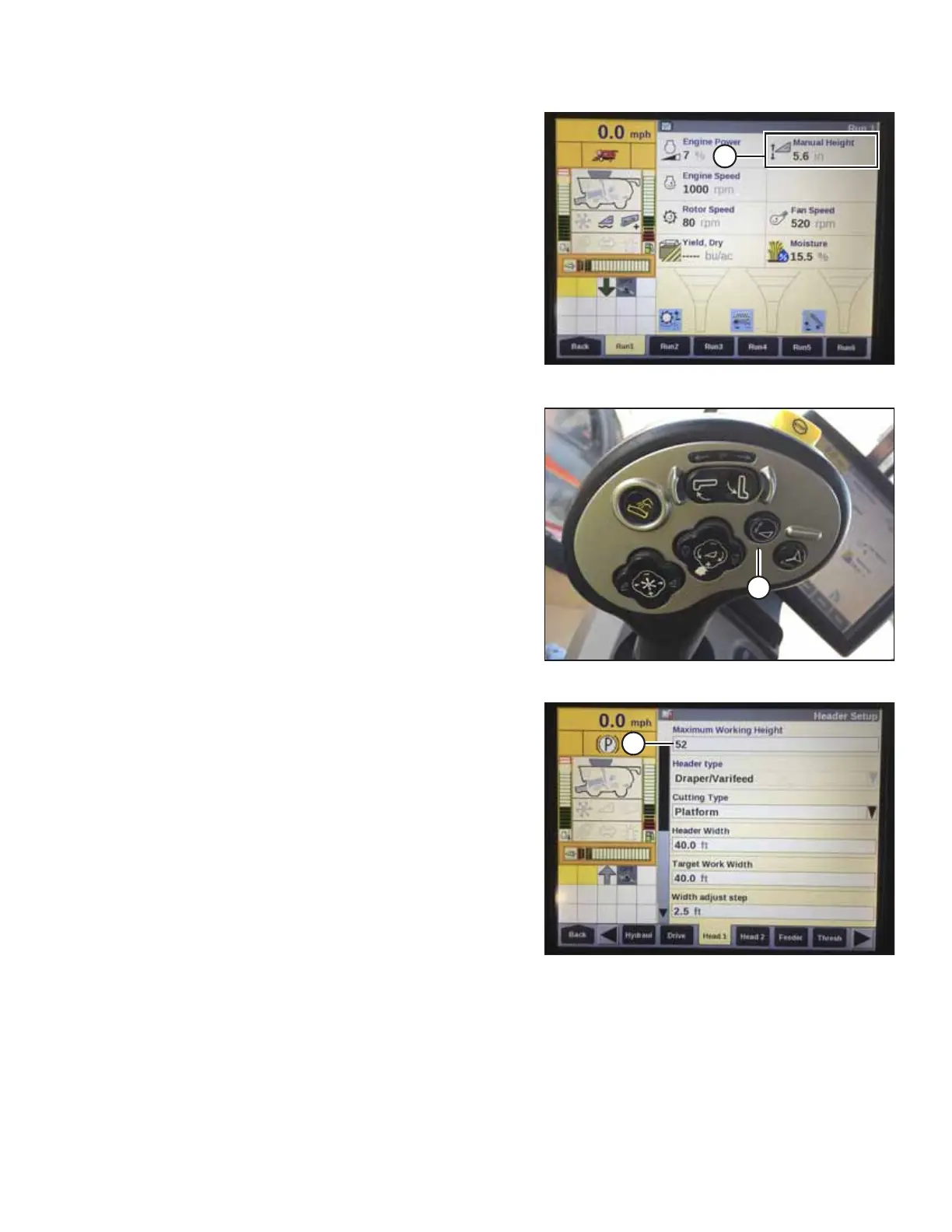

Figure 4.35: Case Combine Display – Run 1 Page
Up and down arrows should now appear in MANUAL
HEIGHT box (A) on the RUN 1 page on the combine display.
This indicates that the auto header height control (AHHC) is
functioning.
1023295
A
Figure 4.36: Case Combine Joystick
6. To enable the presets, activate AHHC button (A) to place
the header on the ground. To enable the first preset, tap
the button once. To enable the second preset, tap the
button twice.
To lift the header to maximum working height, hold the
SHIFT button on the back of the ground speed lever (GSL)
while tapping AHHC button (A).
1023297
A
Figure 4.37: Case Combine Display – Header
Setup Page
7. The maximum working height can be adjusted on the
HEADER SETUP page on the combine display. Enter the
desired height in MAXIMUM WORKING HEIGHT field (A).
