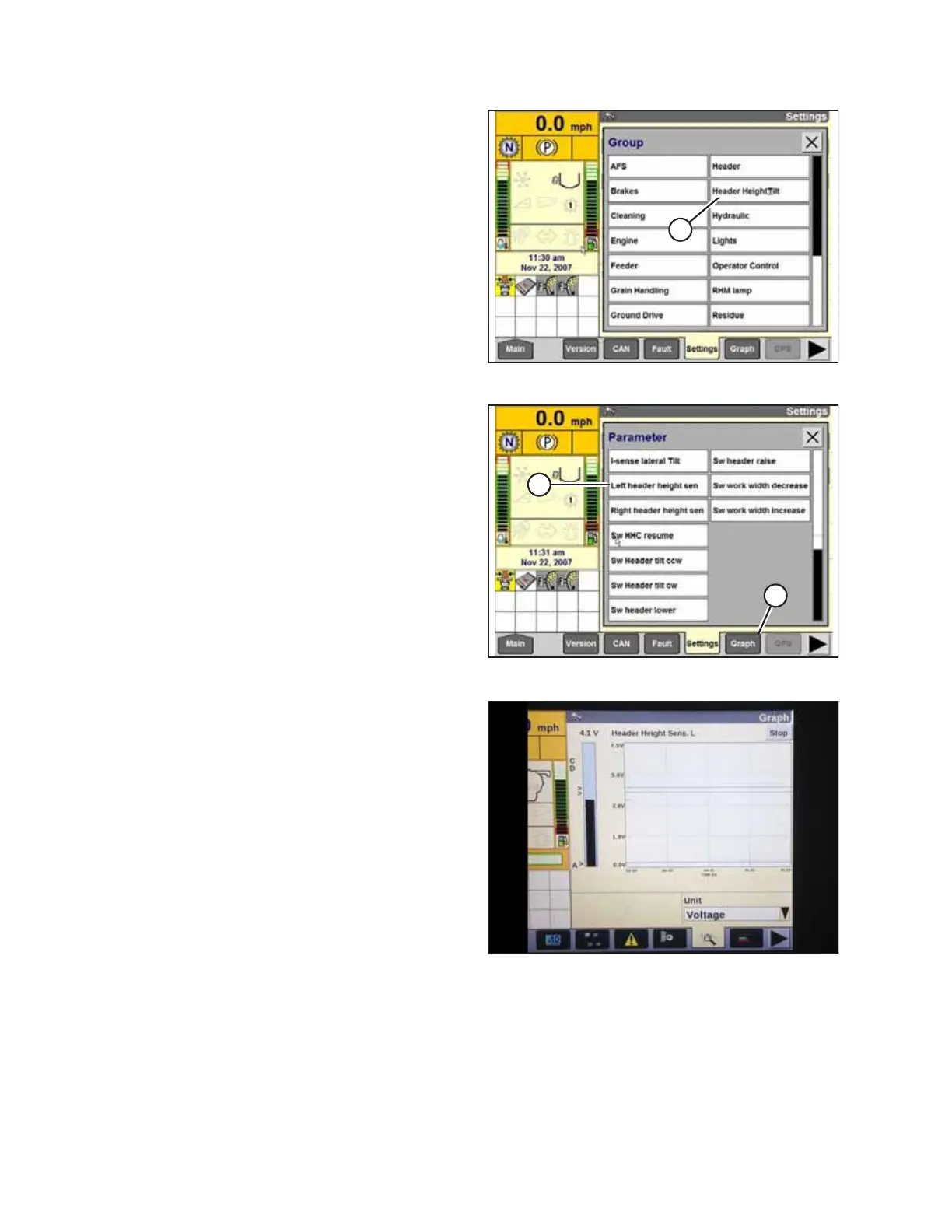

Figure 4.53: Case IH Combine Display
8. Select HEADER HEIGHT/TILT (A). The PARAMETER
page appears.
Figure 4.54: Case IH Combine Display
9. Select LEFT HEADER HEIGHT SEN (A) and then select GRAPH
button (B). The exact voltage is displayed at the top of the
page. Raise and lower the header to see the full range of
voltage readings.
Figure 4.55: Case IH Combine Display
10. If the sensor voltage is not within the low and high limits,
or if the range between the low and high limits is
insufficient, then adjust the voltage limits. For instructions,
refer to 4.4.2 Adjusting Voltage Limits, page 137 and Table
4.1, page 134 .
