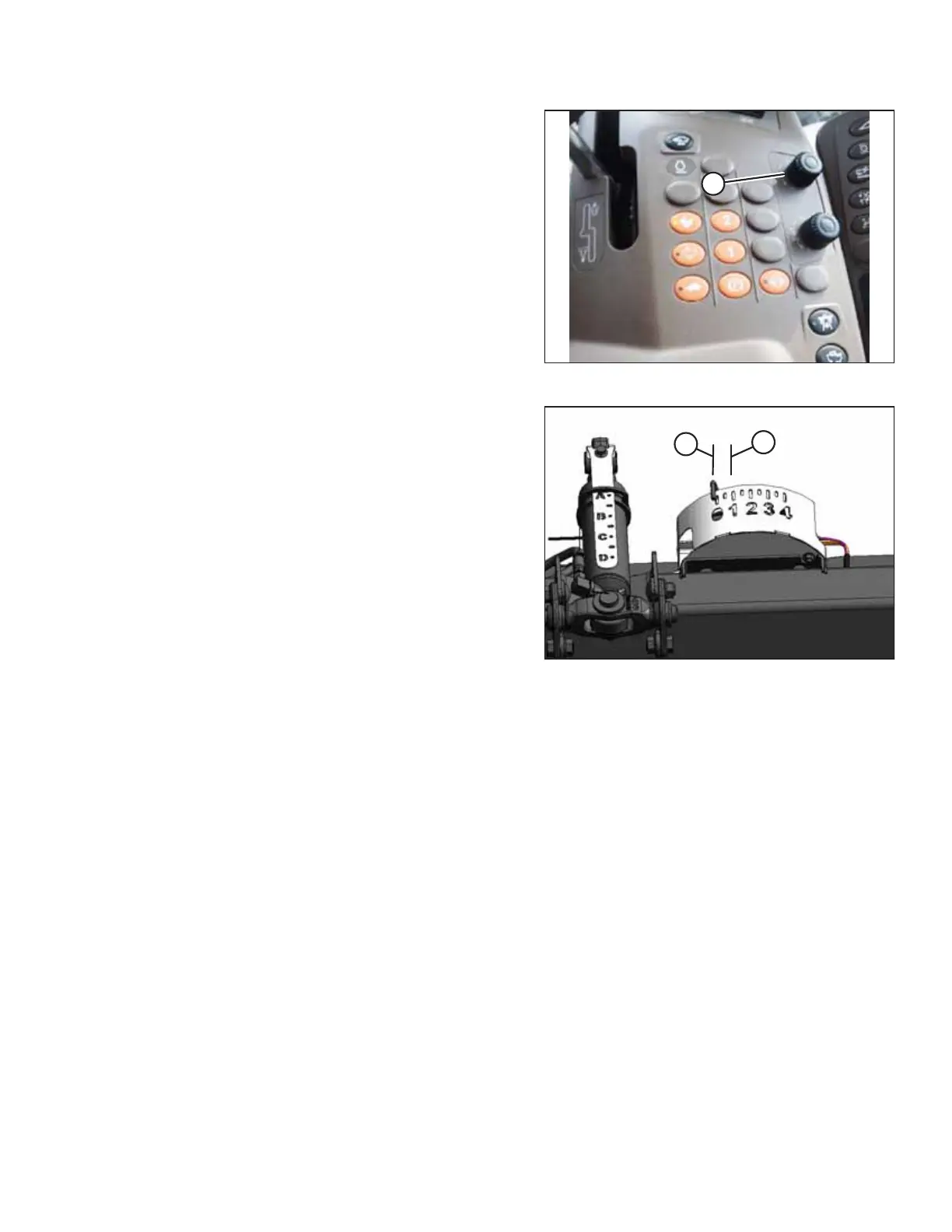

Figure 4.188: Auto Header Control Dial
4. Adjust header to desired ground pressure by turning your
auto header control dial located at the upper right corner
of console (A). Once you have set your desired ground
pressure, the auto header height will maintain constant
float at this ground pressure (it will lower or raise the
feeder house to compensate for changes in ground height).
NOTE:
The auto header height is designed to optimize your float
when cutting on the ground. It does not function when the
cutterbar is off the ground.
Figure 4.189: Float Indicator Box
NOTE:
The ideal ground pressure, in most cases, is one number of
separation on AHHC from having the header fully suspended
off ground (B) to just resting on ground (A). Operating the
header with heavier pressures can wear the cutterbar
wearplate prematurely.
5. The additional buttons (2 or 3) on the hydrostatic lever are
used for two different ground pressure settings. The header
control dial on the console will work for the specific button
that was pushed to activate the auto header height control.
Each time the button is pushed, the header will return to
that specific ground pressure.
AUTO HEADER HEIGHT CONTROL
