MacDon FlexDraper FD75 - Page 277

214323 259 Revision B
1022778
A

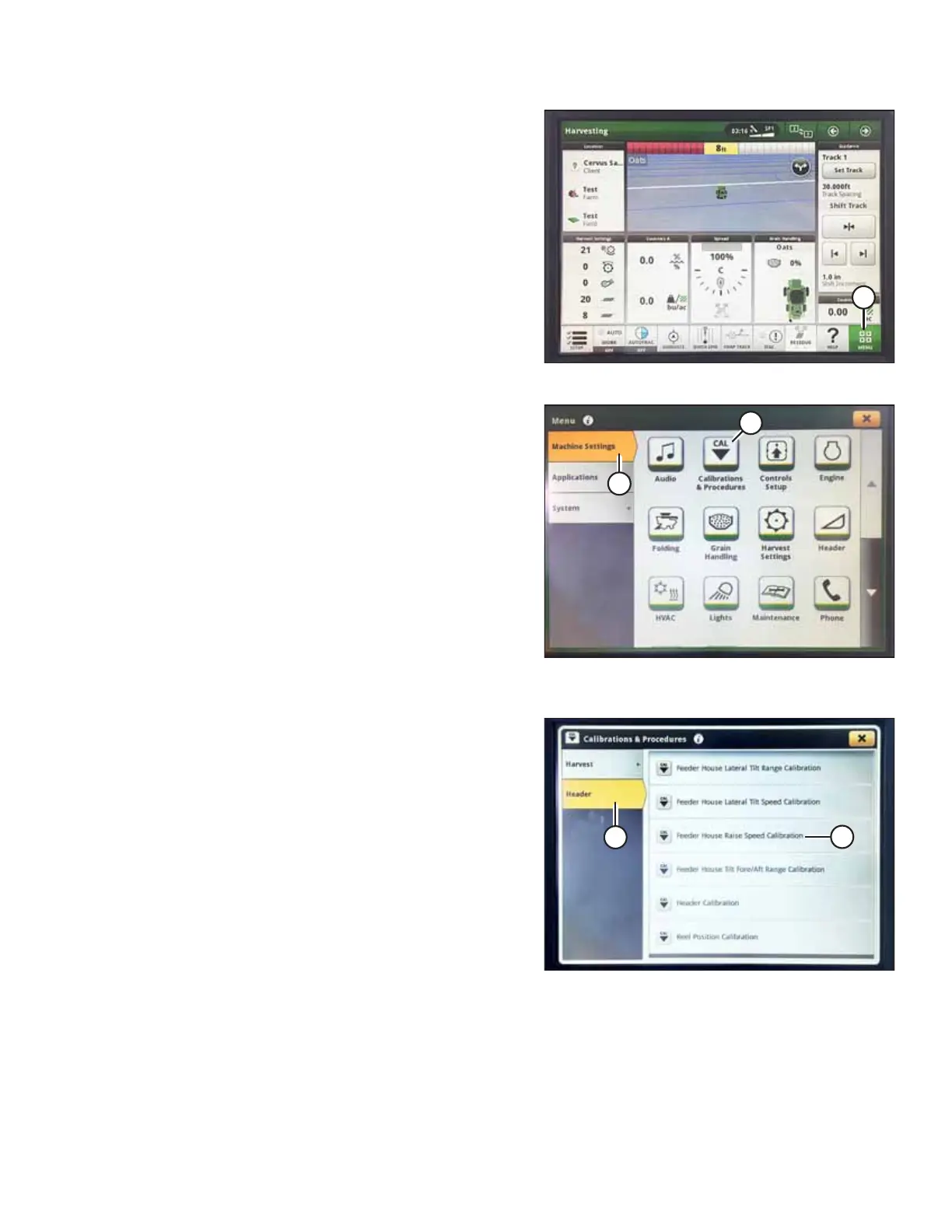

Figure 4.263: John Deere S7 Display – Harvesting Page
3. On the HARVESTING page, select MENU icon (A) in the
bottom right corner of page. The MENU opens.
1022786
A
B
Figure 4.264: John Deere S7 Display – Machine
Settings
4. Select MACHINE SETTINGS tab (A).
5. Select CALIBRATIONS & PROCEDURES icon (B). The
CALIBRATIONS & PROCEDURES page appears.
1022789
A
B
Figure 4.265: John Deere S7 Display – Calibrations and
Procedures
6. Select HEADER tab (A).
7. Select FEEDER HOUSE RAISE SPEED CALIBRATION (B). The
FH RAISE SPEED CALIBRATION page appears.
AUTO HEADER HEIGHT CONTROL
