MacDon FlexDraper FD75 - Page 280

214323 262 Revision B
1022778
A

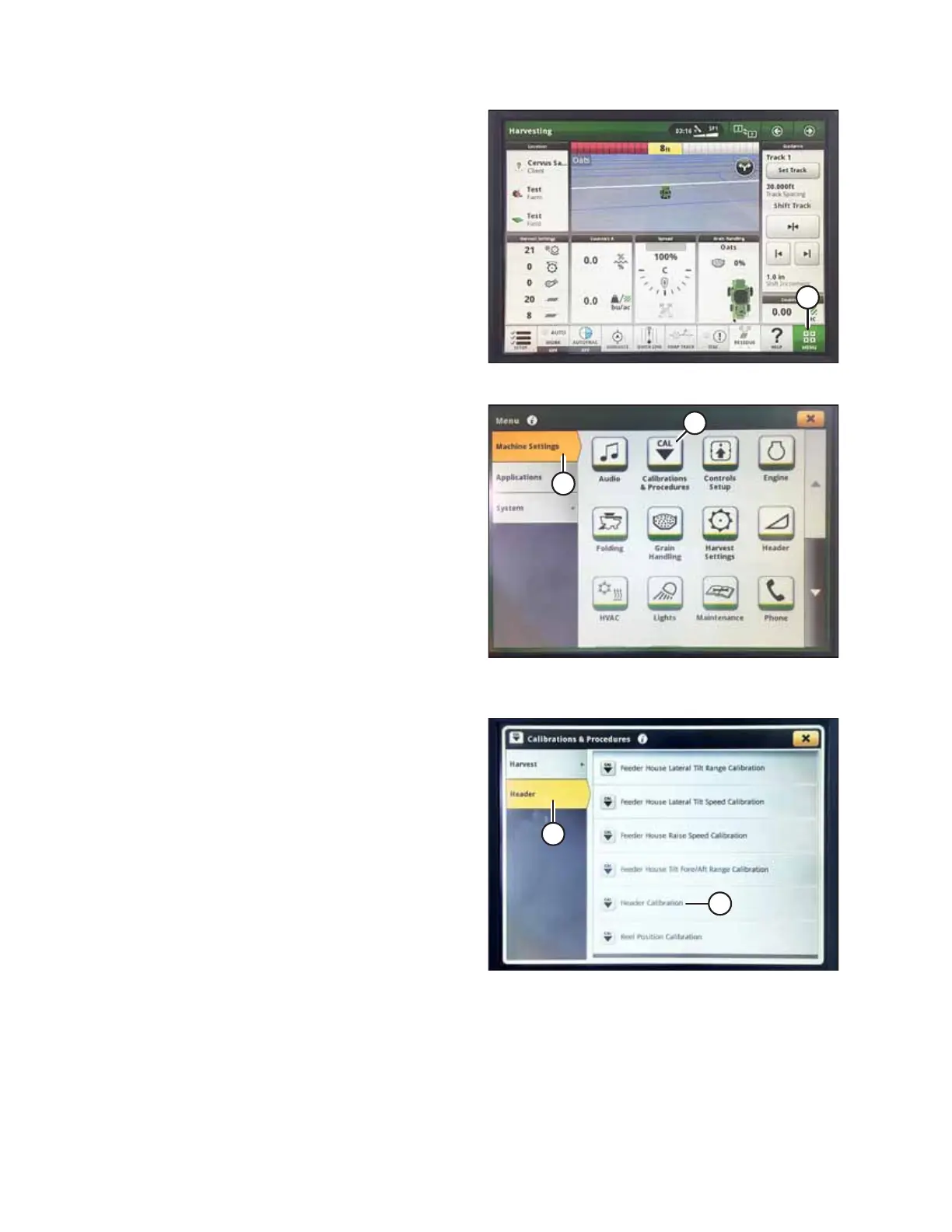

Figure 4.270: John Deere S7 Display – Harvesting Page
4. On the HARVESTING page, select MENU icon (A) in the
bottom right corner of screen. The MENU opens.
1022786
A
B
Figure 4.271: John Deere S7 Display – Machine
Settings
5. Select MACHINE SETTINGS tab (A).
6. Select CALIBRATIONS & PROCEDURES icon (B). The
CALIBRATIONS & PROCEDURES page appears.
1022797
A
B
Figure 4.272: John Deere S7 Display – Calibrations and
Procedures
7. Select HEADER tab (A).
8. Select HEADER CALIBRATION (B). The HEADER CALIBRATION
page appears.
AUTO HEADER HEIGHT CONTROL
